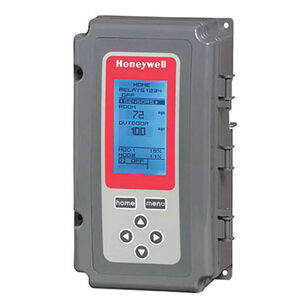

Honeywell T775L2007/U Electronic Temperature Control, 24/120/240 VAC, 9.8/4.9 A Full Load, 58.8/29.4 A Locked Rotor
Honeywell T775L2007/U Electronic Temperature Control, 24/120/240 VAC, 9.8/4.9 A Full Load, 58.8/29.4 A Locked Rotor
Honeywell Electronic Temperature Control, Series: T775L2, 9.8/4.9 A Full Load, 58.8/29.4 A Locked Rotor, 24/120/240 VAC, 1097 ohm PTC at 77 deg F Sensor, Switching Action: SPDT Relay, 50/60 Hz, 1 - 150 deg F Differential, Temperature Settings: 40 - 248 deg F, 4-13/32 in L, 8-5/32 in H, 2-15/16 in W
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$937.32Â /Â ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandHoneywell
Amperage Rating9.8/4.9 A Full Load, 58.8/29.4 A Locked Rotor
Differential Temperature1 - 150
Frequency Rating50/60
Height8-5/32
IndustryHVAC
Length4-13/32
Sensor Type1097 ohm PTC at 77 deg F
SeriesT775L2
Switching ActionSPDT Relay
Temperature Settings40 - 248
Voltage Rating24/120/240
Width2-15/16
Additional Information
CE Certified, CSA Certified, UL Listed, IP65 Rated, C-Tick Approved
Features & Benefits
- Universal model (T775U) can control pressure, humidity, or any variable analog input, special boiler model (T775P) for boiler control Special staged sequencing model (T775L) for sequence staging of relays with one or two setpoints Special expansion model (T775S) for staging up to 12 relays with two setpoints (each T775S provides 4 relays) Save time on installations with the easy-to-use graphical interface, large display and the intuitive programming Provide very fast or very fast response times on modulating outputs by adjusting the integral and derivative times (PI or PID) Configure models with reset in a few easy steps Use the T775L and T775P to stage up to 12 relays (with optional T775S) from two independent heat or cool setpoints Support for digital output alarm on the T775P configurable based on minimum, maximum or differential temperature Relay with reset output Electronic Series 90: 4 - 20 mA, 0 - 10 VDC, 2 - 10 VDC analog output Relay contact rating - 24 VAC - 10 A resistive, 120 VAC - 1/2 hp, 9.8 A full load, 58.8 A locked rotor, 125 V-A pilot-duty, 240 VAC - 1/2 hp, 4.9 A full load, 29.4 A locked rotor, 125 V-A pilot-duty Sensors included - 50021579-001 (1) Maximum distance to sensor up to 1000 ft +/- 1 deg F at 77 deg F accuracy 1 - 150 deg F throttling
Marketing Information
T775 electronic remote temperature controller, is the next generation in commercial/agricultural control - capable of remote sensing temperature, humidity, pressure, etc., and providing switched and/or proportional outputs to various types of loads.
Honeywell T775L2007/U Electronic Temperature Control, 24/120/240 VAC, 9.8/4.9 A Full Load, 58.8/29.4 A Locked Rotor
BrandHoneywell
MFG #T775L2007/U
Keller #453071
My Part ##
Last Ordered#
$937.32Â /Â ea
