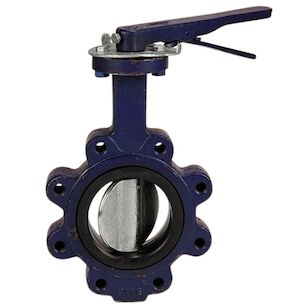

NIBCO N200-246LH-4IN DI BFLY VLV
NIBCO N200-246LH-4IN DI BFLY VLV
NIBCO®, Nominal Size: 4 in, Connection Type: Lug, Pressure Rating: 200 psi, Body Material: Cast Iron, Seat Material: Buna-N Nitrile Rubber, Seal Material: Buna-N Nitrile Rubber, Operator Type: Quarter-Turn Locking Lever Handle
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$903.00 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandNIBCO®
Body MaterialCast Iron
Connection TypeLug
Nominal Size4
Operator TypeQuarter-Turn Locking Lever Handle
Pressure Rating200
Seal MaterialBuna-N Nitrile Rubber
Seat MaterialBuna-N Nitrile Rubber
Additional Information
NSF/ANSI 372
Features & Benefits
- Valve pressure rating 200 psi Maximum 180 degrees F service Lug style Buna-N cartridge seat liner Nickel electroplated ductile iron disc Stainless steel stem with bronze bushings Extended neck Operating mechanism: Bare stem, lever-lock operating system, manual gear operator Not recommended for steam service Designed to meet MSS SP-67 MSS SP-25 (markings) Designed to meet API 609
Marketing Information
The NIBCO pecent cast iron butterfly valve provides ease of operation with quarter-turn (90 degrees) open to close. The Buna-N cartridge seat liner with ductile iron, electro nickel plated disc has good abrasion resistance properties and compatibility with solvents, oil, water and hydraulic fluid for compressed air. An extended neck allows for insulation up to 2 inches. Please refer to NIBCO technical data sheets, chemical resistance guides and catalogs for engineering and installation information. Choose NIBCO pecent international cast iron butterfly valves for versatile and economical applications in commercial systems. These valves are backed by the NIBCO 5-year125% limited warranty.
NIBCO N200-246LH-4IN DI BFLY VLV
BrandNIBCO®
MFG #NLJ360H
Keller #457999
My Part ##
Last Ordered#
$903.00 / ea
