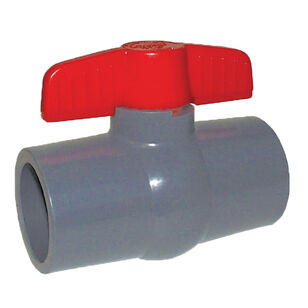

Legend Valve S-607 Series 202-415 Ball Valve, 1 in, Solvent Weld, CPVC, 150 psi
MFG #202-415
Item #470658
Mfr. Part #202-415
UPC #662545010625
Legend Valve Ball Valve, S-607 Series, 1 in Nominal, Solvent Weld Connection, 1-Piece, 150 psi, Water Media, 4.21 in Inlet to Outlet Length, 2.6 in Top to Inlet Center, Handle Operator, Material Standard: ASME B18.6.7M, ASTM D1784, Class 23447, ASTM F1970, ASTM D2846, ASTM D1784, CPVC Body, PTFE Seat, CPVC Stem, PTFE Trim, ABS Handle, ABS/CPVC/EPDM Softgoods, Gray, 180 deg F, 4.21 in L x 2.24 in W x 3.72 in H, Domestic/Import: Domestic
Why Create an Account?
Ability to track orders
More Options & Savings
Amazing Customer Service
$35.49Â /Â ea
In Stock
Attributes
Additional Information
Features & Benefits
Documents
Attributes
BrandLegend Valve
ApplicationFor installation onto schedule 80 CPVC pipe, potable hot and cold water plumbing, commercial plumbing, chemical processing, deionized water and many other applications
Body MaterialCPVC
ColorGray
Configuration1-Piece
Connection TypeSolvent Weld
Dimensions4.21 " L x 2.24 " W x 3.72 " H
Domestic/ImportDomestic
Handle MaterialABS
IndustryPlumbing
Inlet to Outlet Length4.21
Material StandardASME B18.6.7M, ASTM D1784, Class 23447, ASTM F1970, ASTM D2846, ASTM D1784
MediaWater
Nominal Size1
Operator TypeHandle
Pressure Rating150
Seat MaterialPTFE
SeriesS-607 Series
Softgoods MaterialABS/CPVC/EPDM
Stem MaterialCPVC
Temperature Rating180
Top to Inlet Center2.6
Trim MaterialPTFE
Shipping Dimensions (L x W x H)17.3" x 22.8" x 13.3"
Additional Information
NSF/ANSI 14, 61, 372
Features & Benefits
Constructed of heavy-duty, corrosion-proof, virgin CPVC resin
PTFE seats and EPDM stem O-ring assure maintenance-free operation and maximum service life
Compact-pattern molded-in-place light gray colored body and one-piece ball stem design, provide exceptional resistance to wear and to pipeline stress distortion
Not suitable for use with petroleum-based medias or compressed air service
