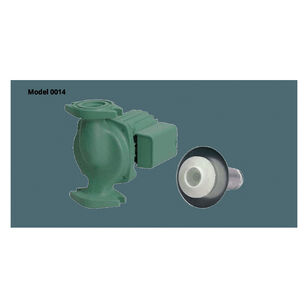

Taco Comfort Solutions® 00 Series 0014 0014-SF1 Circulator Pump, 32 gpm, 115 V, 1.45 A, 60 Hz, 125 psi Max Pressure
Taco Comfort Solutions® 00 Series 0014 0014-SF1 Circulator Pump, 32 gpm, 115 V, 1.45 A, 60 Hz, 125 psi Max Pressure
Taco Comfort Solutions® Circulator Pump, 00 Series, Model: 0014, 32 gpm Flow Rate, 22 ft Maximum Head, 115 V, 1.45 A, 60 Hz, 125 psi Maximum Pressure, 3250 rpm Motor Speed Rating, 1/8 hp, 3/4 in, 1 in, 1-1/4 in, 1-1/2 in Connection, Flanged Connection, 1 ph Phase, 230 deg F Fluid, Stainless Steel, 6-1/2 in H x 7-1/4 in W x 5-3/8 in D, Additional Information: Non-Metallic Impeller Material
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,263.00 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandTaco Comfort Solutions®
Additional InformationNon-Metallic Impeller Material
Amperage Rating1.45
Connection Size3/4 ", 1 ", 1-1/4 ", 1-1/2 "
Connection TypeFlanged
Dimensions6-1/2 " H x 7-1/4 " W x 5-3/8 " D
Flow Rate32
Frequency Rating60
HP Rating1/8
MaterialStainless Steel
Maximum Head22
Maximum Pressure125
Model0014
Motor Speed Rating3250
Phase1
Series00 Series
Temperature Rating230 deg F Fluid
Voltage Rating115
Additional Information
cULus Listed|NSF Certified
Features & Benefits
- High velocity performance Compact design Quiet, efficient operation Direct drive - low power consumption Unique replaceable cartridge design Field serviceable Self lubricating No mechanical seal Unmatched reliability Maintenance free Universal flange to flange dimensions
Marketing Information
The high velocity series Taco 0014 cartridge circulator is designed for quiet, efficient operation in medium head/medium flow applications on large residential/light commercial systems. Ideal for hydronic heating, radiant heating, chilled water cooling and open loop domestic fresh water systems. Its unique field-serviceable cartridge contains all moving parts. Replacing the cartridge rebuilds the circulator. With no mechanical seal, the self-lubricating, maintenance free design provides unmatched reliability. Compact and lightweight, with excellent performance characteristics, the 0014 is ideal for high efficiency jobs where space is a premium. Available in cast iron or stainless steel construction.
Taco Comfort Solutions® 00 Series 0014 0014-SF1 Circulator Pump, 32 gpm, 115 V, 1.45 A, 60 Hz, 125 psi Max Pressure
BrandTaco Comfort Solutions®
MFG #0014-SF1
Keller #470833
My Part ##
Last Ordered#
$1,263.00 / ea
