Taco Comfort Solutions® 00 Series 007-SF5-IFC Circulator Pump, 0 to 17 gpm, 115 V, 0.76 A, 60 Hz, 125 psi Max Pressure
Taco Comfort Solutions® 00 Series 007-SF5-IFC Circulator Pump, 0 to 17 gpm, 115 V, 0.76 A, 60 Hz, 125 psi Max Pressure
Taco Comfort Solutions® Circulator Pump, 00 Series, 0 to 17 gpm Flow Rate, 8-1/2 ft Maximum Head, 115 V, 0.76 A, 60 Hz, 125 psi Maximum Pressure, 3250 rpm Motor Speed Rating, 1/25 hp, 3/4 in, 1 in, 1-1/4 in, 1-1/2 in Connection, Flanged Connection, 1 ph Phase, 230 deg F Fluid, Stainless Steel, 6-3/8 in H x 6-1/8 in W x 5 in D, Additional Information: Non-Metallic Impeller Material
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$919.00 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandTaco Comfort Solutions®
Additional InformationNon-Metallic Impeller Material
Amperage Rating0.76
Connection Size3/4 ", 1 ", 1-1/4 ", 1-1/2 "
Connection TypeFlanged
Dimensions6-3/8 " H x 6-1/8 " W x 5 " D
Flow Rate0 to 17
Frequency Rating60
HP Rating25-Jan
IndustryHydronics
MaterialStainless Steel
Maximum Head8/1/2002
Maximum Pressure125
Motor Speed Rating3250
Phase1
Series00 Series
Temperature Rating230 deg F Fluid
Voltage Rating115
Additional Information
cULus Listed|NSF Certified
Features & Benefits
- Integral Flow Check (IFC) simplifies piping, prevents reverse flow and gravity flow Eliminates separate in-line flow check Reduces installed costs Improves system performance Easy to service Unique replaceable cartridge design - field serviceable Unmatched reliability Quiet, efficient operation Self lubricating, no mechanical seal
Documents
Marketing Information

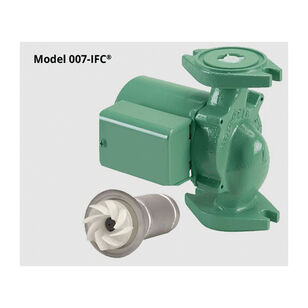

The redesigned 007-IFC features a larger, removable integral flow check designed to improve pump performance, simplify piping and reduce installation costs. The spring-loaded IFC replaces a separate in-line-flow check to ensure protection against reverse flow and gravity flow. IFC is available on all 00 circulators including priority zoning and variable speed control models.
Taco Comfort Solutions® 00 Series 007-SF5-IFC Circulator Pump, 0 to 17 gpm, 115 V, 0.76 A, 60 Hz, 125 psi Max Pressure
BrandTaco Comfort Solutions®
MFG #007-SF5-IFC
Keller #474276
