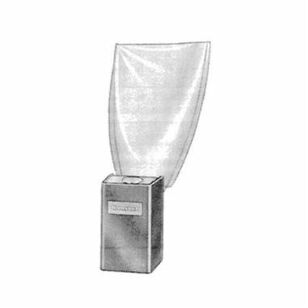

Honeywell S688A1007/U Sail Switch, 3-3/4 in W, 2-15/16 in H, 2 in D
Honeywell S688A1007/U Sail Switch, 3-3/4 in W, 2-15/16 in H, 2 in D
resideo Sail Switch With 5 in W Polyester Film Sail, 3-3/4 in Width, 2-15/16 in Height, 2 in Depth, 3-1/2 in Length, Finish: Zinc-Plated, For Use With: Air Flow Switches, Additional Information: 10 in Insertion Length, 125 deg F Maximum Ambient Temperature at Switch, 170 deg F Maximum Ambient Temperature at Sail
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$216.15Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandHoneywell
Air Flow Capacity75 to 250
ApplicationAir Flow Switch Applications
Depth2
Domestic/ImportImport
FinishZinc-Plated
Height2-15/16
Length3-1/2"
Suitable For Use WithAir Flow Switches
Warranty60 Month
Width3-3/4
Additional Information
CSA Certified|UL File No. E4436, Guide No. XAPX
Features & Benefits
- Simplified installations with multi-speed fans, inaccessible air handlers, fan motors with voltage or phase different from controlled equipment, eliminated wiring to system fan Polyester film sail-mounted on a micro switch snap switch Removable spring counterbalances sail to allow-mounting in either vertical (up or down) or horizontal air flow Top and bottom conduit knockouts for wiring convenience Low air velocity switch operation makes at 250 fpm and breaks at 75 fpm
Marketing Information
The sail switch activates an electronic air cleaner, a humidifier or other equipment in response to airflow from the system fan. The S688A is mounted in the return air duct where the sail will be in the direct path of an unrestricted airstream.
Honeywell S688A1007/U Sail Switch, 3-3/4 in W, 2-15/16 in H, 2 in D
BrandHoneywell
MFG #S688A1007/U
Keller #474704
My Part ##
Last Ordered#
$216.15Â /Â ea
