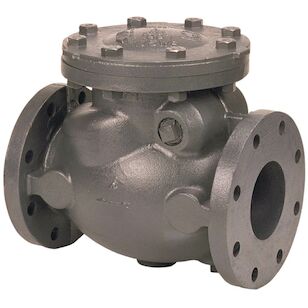

Name: F908W 5 FLG UL/FM CK CAST IRON
Brand: NIBCO®
SKU: 475348
Price: 7331 USD
Availability: OutOfStock

Attributes

BrandNIBCO®

All ApplicationsFire Protection

All Basic MaterialCast Iron

All Type Of ItemValve

ApplicationsFire Protection

End ConnectionFlanged

Height10"

IndustryPlumbing

Length15"

Made in USATrue

MaterialCast Iron

Mpg50

Nominal Pipe Size5

Nominal Size 15".

Prop 65 WarningYes

Seat Seal MaterialBuna-N Nitrile Rubber

Size Dimensions5".

System UseFire Protection

Turns OperationsNon-Manual

Type Of Check ValveSwing

Type Of ValveCheck Valve

Valve End Connection TypeF -- Flanged

Valve Multi Turn Bonnet DesignBolted Bonnet

Valve Pressure Rating Wwp175 PSI/12.1 Bar WWP

Weight145 lbs.

Width14.19"

Features & Benefits

Class 125 flanged end connections
175 psi/12.1 bar non-shock water working pressure (WWP)
Iron body, bronze mounted trim (IBBM)
Bolted bonnet
Renewable seat and disc
All sizes tapped 3/4'' at location ''C'' for ball drip assembly
Flanged end connections
Use in U.S. drinking water applications is prohibited after January 3, 2014
Conforms to MSS SP-71
Listed by Underwriters Laboratories of U.S. and Canada (UL/ULC)
FM Approved
Approved by New York City BSA 143-69-SA

Documents

F908WFP.pdf

Marketing Information

The cast iron check valve features flanged end connections for easy installation. The swing check valve includes a renewable rubber disc and bronze seat ring. Swing checks may be installed in horizontal positions (or vertical with flow moving up). The check valve is recommended for automatic fire sprinkler systems and is UL/ULC listed and FM approved. Please refer to NIBCO technical data sheets, chemical resistance guides and catalogs for engineering and installation information. Choose NIBCO check valves, for the most specified, versatile and economical valve option in commercial, mechanical, fire protection and industrial applications. NIBCO check valves are backed by the NIBCO 5-year 125 Percent limited warranty.
