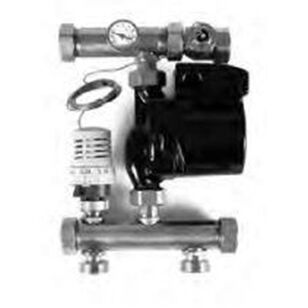

Rehau® PRO-BALANCE 281501-001 Mixing Module
Rehau® PRO-BALANCE 281501-001 Mixing Module
Rehau® Mixing Module, 115 V, 87 psi, For Use With: PRO-BALANCE Manifolds, 0 to 17.5 gpm, 176 deg F
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$2,058.83 / ea
Out of Stock
- Attributes
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandRehau®
Flow Rate0 to 17.5
Pressure Rating87
Suitable For Use WithPRO-BALANCE Manifolds
Temperature Rating176
Voltage Rating115
Features & Benefits
- Max. acceptable working temperature/pressure: 176degF (80degC) / 87 psi (6 bar) Pump: Grundfos UP 15-58-130 mm 1 in. BSPM connections; 3-speed cast iron "SUPERBRUTE"; Integral check valve; 115 VAC, 2 pole, single phase; flow range: 0 to 17.5 US GPM; Head range: 0 to 19 ft
Marketing Information
Intended for small radiant heating applications using a fixed "set point" temperature supply. Designed to fit directly to the left or right of the PRO-BALANCE manifold. The supply temperature to the manifold may be adjusted between 68 and 158degF (20 and 70degC), by means of temperature controlled injection valve. The injection valve has features that can limit the manual adjustment of the valve to prevent tampering and/or over-heating. The module pump would be typically energized by a room thermostat via a relay. The relay could be energized by a thermostat or via the end of the actuator of one of the REHAU electronic boxes.
Rehau® PRO-BALANCE 281501-001 Mixing Module
BrandRehau®
MFG #281501-001
Keller #476073
