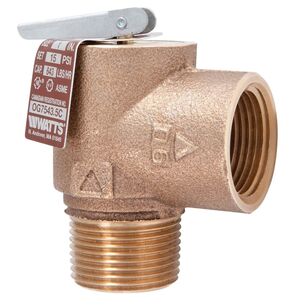

WATTS® 415-M1 Series 0346045 Steam Safety Relief Valve, 3/4 in Nominal, MNPT x FNPT, 15 psi, Forged Brass Body
WATTS® 415-M1 Series 0346045 Steam Safety Relief Valve, 3/4 in Nominal, MNPT x FNPT, 15 psi, Forged Brass Body
WATTS® Steam Safety Relief Valve, 415-M1 Series, 3/4 in Nominal, MNPT x FNPT Connection, 15 psi Pressure, Forged Brass Body, Metal Seat, PTFE Disc, Dimensions: 2-13/16 in H
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$383.50 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandWATTS®
Body MaterialForged Brass
Connection TypeMNPT x FNPT
Dimensions2-13/16 " H
Disc MaterialPTFE
IndustryPlumbing
Nominal Size3/4
Pressure Rating15
Seat MaterialMetal
Series415-M1 Series
Shipping Dimensions (L x W x H)2.562" x 1.94" x 4"
Additional Information
ASME Section IV|HV|ISO 9001:2008 Certified|NB Certified
Features & Benefits
- High capacity Positive shut-off Non-sticking teflon disc Seat located above drain 450 lb/hr nominal capacity
Documents
Marketing Information
Watts Regulators series 415 steam safety relief valves are used in commercial and industrial applications for low-pressure, steam heating boilers and process equipment. It consists of a brass body or a bronze body construction with MNPT inlet and FNPT outlet drain connection, stainless steel spring, a top-guided stem, and a non-stick teflon disc-to-metal seating. Model 415SC has satin chrome finish. Model 415L has low pressure setting at 8psi for pressure cookers and steam cleaning equipment. ASME section IV at 15 psi set point.
