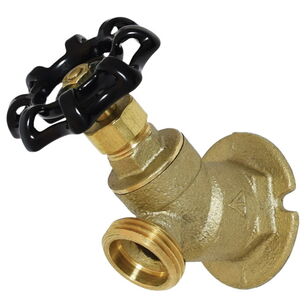

Legend Valve T-541 Series 107-175 Sillcock Valve, 3/4 in, FNPT x MGHT, Brass
Legend Valve T-541 Series 107-175 Sillcock Valve, 3/4 in, FNPT x MGHT, Brass
Legend Valve Sillcock Valve, T-541 Series, 3/4 in Nominal, FNPT x MGHT Connection, 125 CWP, Water Media, 2.37 in Inlet to Outlet Length, Brass Body, Brass Stem, Brass/NBR Packing, Iron Handle, NBR Softgoods, Handwheel Operator, 2.37 in L x 3.98 in H
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$32.70Â /Â ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandLegend Valve
Body MaterialBrass
Connection TypeFNPT x MGHT
Dimensions2.37 " L x 3.98 " H
Handle MaterialIron
Inlet to Outlet Length2.37
MediaWater
Nominal Size3/4
Operator TypeHandwheel
Packing MaterialBrass/NBR
Pressure Rating125
SeriesT-541 Series
Softgoods MaterialNBR
Stem MaterialBrass
Additional Information
NSF/ANSI 61-9
Features & Benefits
- Full-pattern body, stem and hand wheel construction Electric induction furnace casting process optimizes molten brass temperatures, resulting in superior cast body and bonnet components Equipped with a stem packing and packing nut design, which are superior to packless bonnet stem seal designs AISI 1010 cadmium-plated steel nut handle fastener Commercial-grade NBR rubber stem packing and seat washer, AISI grade 304 stainless steel seat retaining screw ASTM B16 C36000 brass packing nut, ASTM B584 C85700 cast brass bonnet 3/4 in GHT (garden hose) outlets accept 3/4 in hose thread-mounted vacuum breakers
