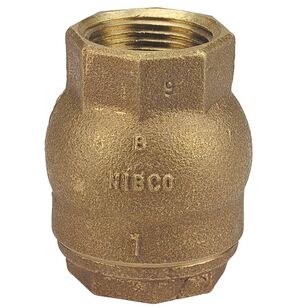

NIBCO T-480-Y-3/4 BRZ CHECK VLV NOT FOR POTABLE USE
NIBCO T-480-Y-3/4 BRZ CHECK VLV NOT FOR POTABLE USE
NIBCO® Ring Check Valve, 3/4 in Nominal, FNPT Connection, 250 psi, Pressure Class: 125 lb, 353 deg F, 2-1/4 in Inlet to Outlet Length, Bronze Body, Stainless Steel Stem, PTFE Disc, 2.44 in L x 1.44 in W x 1.44 in H, Domestic/Import: Domestic
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$193.40 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandNIBCO®
Body MaterialBronze
Connection TypeFNPT
Dimensions2.44 " L x 1.44 " W x 1.44 " H
Disc MaterialPTFE
Domestic/ImportDomestic
IndustryPlumbing
Inlet to Outlet Length2-1/4
Nominal Size3/4
Pressure Class125
Pressure Rating250
Stem MaterialStainless Steel
Temperature Rating353
Shipping Dimensions (L x W x H)13.31" x 4.38" x 3.13"
Additional Information
MSS SP-80
Features & Benefits
- 125 psi/8.6 bar saturated steam to 353 deg F/178 deg C Valve pressure rating 200 psi/14 bar non-shock cold working pressure In-line lift-type Spring actuated (1/2 psi cracking pressure) PTFE resilient seat disc
Documents
Marketing Information
The NIBCO® bronze Ring Check® valve is uniquely designed with an in-line, spring assisted self-closing disc. The lift check valve prevents backflow by automatically closing when fluid reverses direction. With a PTFE disc, the check valve is recommended for steam service.
NIBCO T-480-Y-3/4 BRZ CHECK VLV NOT FOR POTABLE USE
BrandNIBCO®
MFG #NL93188
Keller #47716
