• 150 psi/10.3 bar saturated steam to 366 degrees F/185 degrees C 250 psi/17.2 bar non-shock cold working pressure Ductile Iron Class 150 raised face flanged Outside screw and yoke Bolted bonnet Renewable seat and disc Class 150 raised face flanged end connections Use in U.S. drinking water applications is prohibited after January 3, 2014 Conforms to MSS SP-85

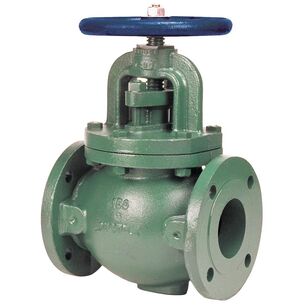

The ductile iron outside screw and yoke (OS and Y) globe valve features Class 150 raised face end connections for easy installation and accessibility. This valve features renewable seat and disc. The bolted bonnet makes the valve convenient to maintain. Because of its seat and disc arrangement the valve is ideal for throttling or regulating flow. With its ductility, this valve displays higher physical properties than standard grey cast iron. Please refer to NIBCO technical data sheets, chemical resistance guides and catalogs for engineering and installation information. Choose NIBCO pecent globe valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO pecent globe valves are backed by the NIBCO 5-year 125% limited warranty
