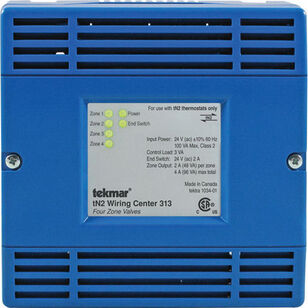

Tekmar® tekmarNet 2 313 Wiring Center, 10 kohm NTC Thermistor at 77 deg F Sensor, User Interface: LED, 4 -Zone
Tekmar® tekmarNet 2 313 Wiring Center, 10 kohm NTC Thermistor at 77 deg F Sensor, User Interface: LED, 4 -Zone
Tekmar® tekmarNet 2 Wiring Center, 24 VAC at 60 Hz Power Supply, 10 kohm NTC Thermistor at 77 deg F Sensor, User Interface: LED, 4 -Zone, 32 - 122 deg F Ambient Control, NEMA 1 Enclosure, PC/ABS Plastic, Blue, 5-1/2 in W x 5-1/2 in H x 2-1/4 in D
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$675.00 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandTekmar®
ColorBlue
Control Range32 - 122 deg F Ambient
Dimensions5-1/2 " W x 5-1/2 " H x 2-1/4 " D
Enclosure TypeNEMA 1
MaterialPC/ABS Plastic
Number of Zones4
Power Supply24 VAC at 60 Hz
Sensor Type10 kohm NTC Thermistor at 77 deg F
User InterfaceLED
Additional Information
C/US CSA Certified, Meets Class B: ICES & FCC Part 15
Features & Benefits
- A line voltage output on the back of the control can operate a zone group pump if required An outdoor sensor input is included and provides the outdoor air temperature reading on each thermostat when an optional outdoor sensor is installed External diagnostic LEDs Isolated end switch Only requires two-wires per zone Supports two-stage tekmarNet 2 thermostats TN4 expansion terminals Microprocessor control Indoor use only ambient conditions 2 A at 24 VAC, 4 A maximum combined current zone valve load zone valve load 2 A at 24 VAC end switch relay 5 A at 115 VAC zone group pump 3 V-A minimum and 99 V-A maximum class 2 at 24 VAC Less than or equal to 90% non-condensing humidity Limited three-years warranty
Tekmar® tekmarNet 2 313 Wiring Center, 10 kohm NTC Thermistor at 77 deg F Sensor, User Interface: LED, 4 -Zone
BrandTekmar®
MFG #313
Keller #479388
My Part ##
Last Ordered#
$675.00 / ea
