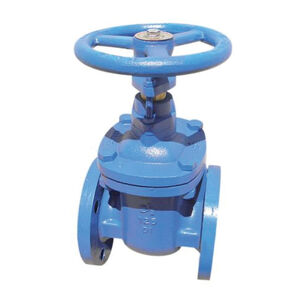

RWV® 415 Series 415-4 Gate Valve, 4 in, Flanged, Ductile Iron, 125 WSP, 200 WOG
RWV® 415 Series 415-4 Gate Valve, 4 in, Flanged, Ductile Iron, 125 WSP, 200 WOG
RWV® Gate Valve, 415 Series, 4 in Nominal, Flanged Connection, 125 WSP, 200 WOG, Gas, Oil, Water Media, Handwheel Actuator, 9.16 in Inlet to Outlet Length, 22.24 in Top to Inlet Center, Ductile Iron Body, Brass/Stainless Steel Stem, Bronze Trim, Graphite Packing, Ductile Iron Handle, Graphite Softgoods, Handwheel Operator, 610 Cv Flow Coefficient (Cv), 14 to 248 deg F, Material Standard: ANSI B16.5, 420, ASTM A536, B62 C833600, B16 C36000, 9.16 in L
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,032.27 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandRWV®
Actuator TypeHandwheel
Body MaterialDuctile Iron
Connection TypeFlanged
Dimensions9.16 " L
Flow Coefficient (Cv)610
Handle MaterialDuctile Iron
Inlet to Outlet Length9.16
Material StandardANSI B16.5, 420, ASTM A536, B62 C833600, B16 C36000
MediaGas, Oil, Water
Nominal Size4
Operator TypeHandwheel
Packing MaterialGraphite
Pressure Rating125 WSP, 200 WOG
Series415 Series
Softgoods MaterialGraphite
Stem MaterialBrass/Stainless Steel
Temperature Rating14 to 248
Top to Inlet Center22.24
Trim MaterialBronze
Additional Information
MSS-SP-70
Features & Benefits
- Non-rising stem design IBBM, solid disc
Documents
RWV® 415 Series 415-4 Gate Valve, 4 in, Flanged, Ductile Iron, 125 WSP, 200 WOG
BrandRWV®
MFG #415 4
Keller #482825
