cULus Listed|UL 103HT|ULC S604 MH7399

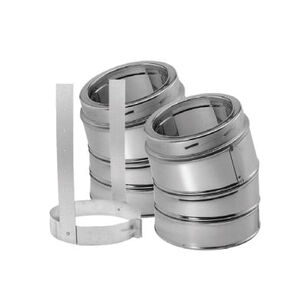

• Use for offsets around obstructions such as rafters, ridgepoles or joists May have two pairs of elbows, if needed Offsets greater than 30 deg are not permitted in accordance to UL 103 standards Elbows swivel 360 deg at base (angles are not adjustable) A pair of elbows is required to return an offset chimney back to vertical

With a thermal tech blanket insulation encased between dual walls, DuraTech® offers the optimum in safety and performance. It keeps the outer wall of the chimney cool, while ensuring high flue gas temperatures for optimum draft performance. The inner wall is 25% thicker than competitive chimneys for an extra margin of safety. No locking bands or mechanical fasteners required. DuraTech's sleek 1 in wall design provides for easy installations through 16 in on center framing. For tight installations, a reduced clearance square ceiling support box is available (6 in Dia DuraTech® only). Designed for normal, continuous operation at 1000 deg F flue gas temperatures, DuraTech® is subjected to rigorous and stringent high temperature requirements of the UL standard, including 1 hr at 1400 deg F, plus three 10 min chimney fire test at 2100 deg F.
