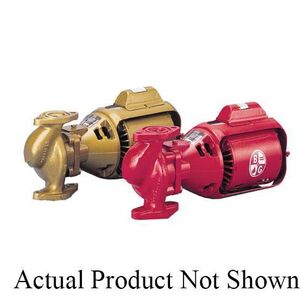

Bell & Gossett PR Series PR AB 102208LF Circulator Pump, 0 to 27 gpm, 115 VAC, 1.9 A, 60 Hz, 125 psi Max Pressure
Bell & Gossett PR Series PR AB 102208LF Circulator Pump, 0 to 27 gpm, 115 VAC, 1.9 A, 60 Hz, 125 psi Max Pressure
Bell & Gossett Circulator Pump, PR Series, Model: PR AB, 0 to 27 gpm Flow Rate, 17-1/2 ft Maximum Head, 115 VAC, 1.9 A, 60 Hz, 125 psi Maximum Pressure, 1725 rpm Motor Speed Rating, 1/6 hp, 3/4 in, 1 in, 1-1/4 in, 1-1/2 in Connection, NPT Flanged Connection, 1 ph Phase, In-Line Mounting, 225 deg F, Carbon Steel/Bronze, 15-1/4 in W, Additional Information: Bronze Impeller Material
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$3,711.97Â /Â ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandBell & Gossett
Additional InformationBronze Impeller Material
Amperage Rating1.9
Connection Size3/4 ", 1 ", 1-1/4 ", 1-1/2 "
Connection TypeNPT Flanged
Dimensions15-1/4 " W
Flow Rate0 to 27
Frequency Rating60
HP Rating1/6
IndustryHydronics
MaterialCarbon Steel/Bronze
Maximum Head17-1/2
Maximum Pressure125
ModelPR AB
Motor Speed Rating1725
Mounting Type"-Line
Phase1
SeriesPR Series
Temperature Rating225
Voltage Rating115
Additional Information
CSA Certified|UL Listed
Features & Benefits
- Series PR AB all bronze pumps are dependable, in-line booster pumps intended to pump potable, domestic water from hot water heater tanks to areas such as bathrooms and kitchens The Series PR is designed for applications that require increased flow and head pressures This innovative design provides for easy field service as the bearings, shaft and seal are all housed within the bearing assembly This assembly can then be easily repaired or entirely replaced without disturbing the other components of your pump The Series PR resilient motor mounting is another feature unique to Bell & Gossett The mounting, combined with spring-loaded couplers, means your pump will run quietly and efficiently Features a three-piece design, which includes a motor, bearing assembly and volute
Bell & Gossett PR Series PR AB 102208LF Circulator Pump, 0 to 27 gpm, 115 VAC, 1.9 A, 60 Hz, 125 psi Max Pressure
BrandBell & Gossett
MFG #102208LF
Keller #48599
My Part ##
Last Ordered#
$3,711.97Â /Â ea
