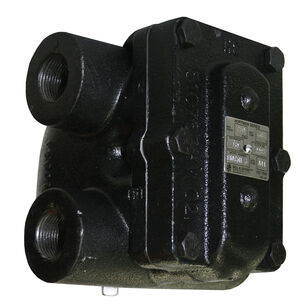

Bell & Gossett H Series FT015H-3 404200 Float and Thermostatic Steam Trap, 3/4 in Nominal, Iron
Bell & Gossett H Series FT015H-3 404200 Float and Thermostatic Steam Trap, 3/4 in Nominal, Iron
Bell & Gossett Float and Thermostatic Steam Trap, Series: H Series, Model: FT015H-3, 3/4 in Nominal, NPT, 175 psig, Iron, 406 deg F, 5-19/32 in L x 5-1/2 in W x 6-1/2 in D
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$504.00Â /Â ea
In Stock
- Attributes
- Features & Benefits
- Documents
Attributes
BrandHOFFMAN
ApplicationFor commercial and industrial heating applications such as steam main drip traps unit heaters, tank coils, air make-up coils, shell and tube heat exchangers
Connection TypeNPT
Dimensions5-19/32 " L x 5-1/2 " W x 6-1/2 " D
IndustryHVAC
MaterialIron
ModelFT015H-3
Nominal Size3/4
Pressure Rating175
SeriesH Series
Temperature Rating406
Features & Benefits
- Universal 4-port tappings (2-inlets and 2-outlets) That provide versatility to allow easy piping and system monitoring Stainless steel internal components Resistant to water hammer and corrosion Below condensate level seat design prevents steam leakage Rugged thermostatic element eliminates air binding Stainless steel (hardened) valve pin and seat Stainless steel float and lever assembly Stainless steel cage and thermal element thermostatic air vent Grade 5 cover bolts Same side piping configuration
Bell & Gossett H Series FT015H-3 404200 Float and Thermostatic Steam Trap, 3/4 in Nominal, Iron
BrandHOFFMAN
MFG #404200
