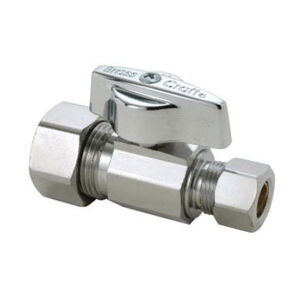

BrassCraft® KTCR14X C Ball Stop Valve, 1/2 x 3/8 in Nominal, Compression, Quarter-Turn Handle Actuator, 125 psi
BrassCraft® KTCR14X C Ball Stop Valve, 1/2 x 3/8 in Nominal, Compression, Quarter-Turn Handle Actuator, 125 psi
BrassCraft® Ball Stop Valve, 1/2 x 3/8 in Nominal, Compression Connection, 125 psi, Brass/PTFE Trim, PTFE/Rubber Softgoods, Brass Body, Zinc Handle, Quarter-Turn Handle Actuator, Finish: Chrome-Plated, 40 to 180 deg F, 2.32 in L, Domestic/Import: Domestic, Additional Information: 2.32 in L Inlet to Outlet, 1.14 in Top to inlet Center, Lead-Free, PTFE Seat, Brass Stem, Straight Configuration, Water Media, Water Service
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$28.77 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandBrassCraft®
Actuator TypeQuarter-Turn Handle
Additional Information2.32 " L Inlet to Outlet, 1.14 " Top to inlet Center, Lead-Free, PTFE Seat, Brass Stem, Straight Configuration, Water Media, Water Service
ApplicationFor use in potable water distribution systems and recirculating water systems that produce continuous use temperatures above 115 deg F and indoor use
Body MaterialBrass
Connection TypeCompression
Dimensions2.32 " L
Domestic/ImportDomestic
FinishChrome-Plated
Handle MaterialZinc
IndustryPlumbing
Nominal Size1/2 x 3/8
Pressure Rating125
Softgoods MaterialPTFE/Rubber
Temperature Rating40 to 180
Trim MaterialBrass/PTFE
Additional Information
ASME A112.18.1|CSA B125.1|cUPC Certified|NSF/ANSI 372, NSF/ANSI/CAN 61
Features & Benefits
- Machined one-piece brass body provides strength, durability and long-lasting performance Compatible with copper piping Precision machined brass ball to provides smoother operation without freeze-ups even after long periods of non-use Easy-to-remove handle protects against accidental operation during rough-ins Plated stem provides corrosion-resistance and prevents O-ring damage, metal handle is designed for durability, corrosion-resistance and a sleek appearance 100% leak tested to ensure reliable, leak-free performance Designed, machined and assembled in the USA
Marketing Information
BrassCraft® 1/2 in nominal compression inlet x 3/8 in OD compression outlet 1/4-turn straight ball stop controls water flow to household plumbing fixtures, faucets, toilets, dishwashers, icemakers, washing machines and more. The angle valve is most often used where the water pipe enters the room from the wall. With a 90 deg turn of the valve handle, you are able to stop the flow of water leading to the plumbing fixture, allowing for maintenance and repair without turning-off water to the entire home.
BrassCraft® KTCR14X C Ball Stop Valve, 1/2 x 3/8 in Nominal, Compression, Quarter-Turn Handle Actuator, 125 psi
BrandBrassCraft®
MFG #KTCR14X C
Keller #490301
My Part ##
Last Ordered#
$28.77 / ea
