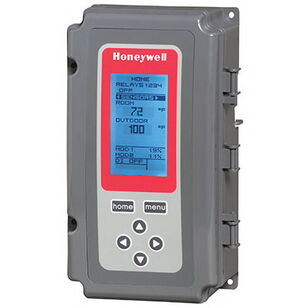

Honeywell T775P2003/U Remote Temperature Control, 24/120/240 VAC, Configuration: (4) SPDT
Honeywell T775P2003/U Remote Temperature Control, 24/120/240 VAC, Configuration: (4) SPDT
Honeywell Remote Temperature Control, T775P Model, 24/120/240 VAC, 1097 ohm PTC at 77 deg F Sensor, Configuration: (4) SPDT, +/-1 deg F at 77 deg F Accuracy, 50/60 Hz, 10 A at 24 VAC Resistive, 1/2 hp at 24 VAC, 9.8 A Full Load, 58.8 A Locked Rotor at 125 V-A Pilot Duty, 1/2 hp at 240 VAC, 4.9 A Full Load, 29.4 A Locked Rotor at 125 V-A Pilot Duty Contact, 1 - 150 deg F Differential, Temperature Settings: -40 to 248 deg F, 4-13/32 in L, 8-5/32 in H, 2-15/16 in W, -40 to 125 deg F at 50 Hz, -40 to 140 deg F at 60 Hz Ambient
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,124.12Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandHoneywell
Accuracy+/-1 deg F at 77 deg F
Configuration(4) SPDT
Contact Rating10 A at 24 VAC Resistive, 1/2 hp at 24 VAC, 9.8 A Full Load, 58.8 A Locked Rotor at 125 V-A Pilot Duty, 1/2 hp at 240 VAC, 4.9 A Full Load, 29.4 A Locked Rotor at 125 V-A Pilot Duty
Differential Temperature1 - 150
Frequency Rating50/60
Height8-5/32
IndustryHVAC
Length4-13/32
ModelT775P
Sensor Type1097 ohm PTC at 77 deg F
Temperature Rating-40 to 125 deg F at 50 Hz, -40 to 140 deg F at 60 Hz Ambient
Temperature Settings-40 to 248
Voltage Rating24/120/240
Width2-15/16
Additional Information
cUL/US Listed, CE Certified, C-Tick Listed
Features & Benefits
- Special boiler model (T775P) for boiler control Save time on installations with the easy-to-use graphical interface, large display and the intuitive programming Use the time clock scheduler or digital input to control the setback and disable output options to help save energy Provide very fast or very fast response times on modulating outputs by adjusting the integral and derivative times (PI or PID) Configure models with reset in a few easy steps Use the T775P to stage up to (12) relays from two-independent heat or cool setpoints Support for digital output alarm on the T775P configurable based on minimum, maximum or differential temperature Relay with reset output 1 - 150 deg F throttling range Electronic Series 90: 4 - 20 mA, 0 - 10 VDC, 2 - 10 VDC analog output Up to 1000 ft maximum distance to sensor Stages loop control 3-sensor inputs
Documents
Honeywell T775P2003/U Remote Temperature Control, 24/120/240 VAC, Configuration: (4) SPDT
BrandHoneywell
MFG #T775P2003/U
Keller #490665
