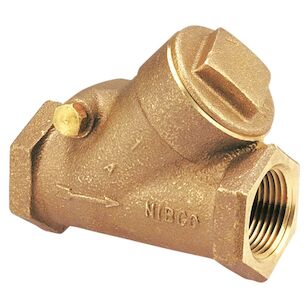

T473B 2 THD 300No. CHECK BRZ SEAT
T473B 2 THD 300No. CHECK BRZ SEAT
T473B 2 THD 300No. CHECK BRZ SEAT
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,542.00Â /Â ea
Out of Stock
- Attributes
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandNIBCO®
All Basic MaterialBronze
All Type Of ItemValve
End ConnectionThreaded
Height3.1"
IndustryPlumbing
Length5.25"
Made in USATrue
MaterialBronze
Mpg20
Nominal Pipe Size2
Nominal Size 12".
Prop 65 WarningYes
Seat Seal MaterialBronze
Size Dimensions2".
Turns OperationsNon-Manual
Type Of Check ValveSwing
Type Of ValveCheck Valve
Valve End Connection TypeT -- Female NPT Thread (FIPT)
Valve Multi Turn Bonnet DesignScrew-in Bonnet
Valve Pressure Rating Cwp600 PSI/41.4 Bar CWP
Valve Pressure Rating Swp300 PSI/20.7 Bar SWP
Weight8.13 lbs.
Width4.89"
Shipping Dimensions (L x W x H)9.25" x 7.94" x 3.81"
Features & Benefits
- 300 psi/20.7 bar saturated steam to 421 degreeF/216 degreeC
- 600 psi/41.4 bar non-shock cold working pressure
- Y-pattern
- Renewable bronze disc
- Regrindable seat
- Class 300 threaded end connections
- Use in U.S. drinking water applications is prohibited after January 3, 2014
- Conforms to MSS SP-80
Documents
Marketing Information
The NIBCO bronze check valve features threaded end connections for ease of installation. Swing checks may be installed in horizontal positions (or vertical with flow moving up). Please refer to NIBCO technical data sheets, chemical resistance guides and catalogs for engineering and installation information. Choose NIBCO check valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO check valves are backed by the NIBCO 5-year 125 Percent limited warranty.
