VICF V020728CT1 2 FPV 728 UL/FM/ULC GXG T HW B020466GW2 350 PSI W/1/4 TAP FIRELOCK VALVE
VICF V020728CT1 2 FPV 728 UL/FM/ULC GXG T HW B020466GW2 350 PSI W/1/4 TAP FIRELOCK VALVE

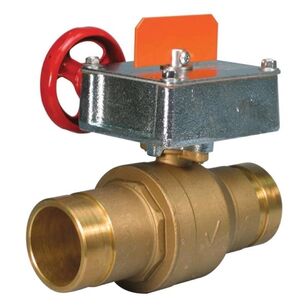

Victaulic® FireLock™ Ball Valve, 728 Series, 2 in Nominal, Grooved Connection, Full Port, 365 psi, 7-1/4 in Inlet to Outlet Length, 3.15 in Top to Inlet Center, Material Standard: ASTM B124, ASTM B16 C36000, Brass Body, TFE Seat, 316 Stainless Steel Stem, Brass Ball, 5.47 in H
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,079.00 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandVictaulic®
Ball MaterialBrass
Body MaterialBrass
Connection TypeGrooved
Dimensions5.47 " H
Inlet to Outlet Length7-1/4
Material StandardASTM B124, ASTM B16 C36000
Nominal Size2
Port TypeFull
Pressure Rating365
Seat MaterialTFE
Series728 Series
Stem Material316 Stainless Steel
Top to Inlet Center3.15
Additional Information
cULus Listed|FM 1112|UL 1091|LPCB LPS 1185: Issue 3.1 Cert/LPCB Ref. 104i/01|VdS Approved
Features & Benefits
- Standard port and supervisory switch
Documents
Marketing Information
The Series 728 FireLock™ valve is a full port, ball valve that is UL/FM-rated for 365 psi/25 bar service in all sizes (LPCB and VdS listed for 20 bar services). Available with grooved or threaded ends (NPT), the valve body is brass. The ball is chrome-plated brass with a stainless steel stem. Reinforced seats aid ease of operation and provide a durable, corrosion-free seat. Flow characteristics exceed UL specification 1091 and FM approval standard 1112. The valve is approved for indoor and outdoor use.
VICF V020728CT1 2 FPV 728 UL/FM/ULC GXG T HW B020466GW2 350 PSI W/1/4 TAP FIRELOCK VALVE
BrandVictaulic®
MFG #V020728CT1
Keller #491104
My Part ##
Last Ordered#
$1,079.00 / ea
