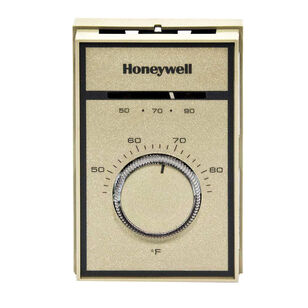

Honeywell T451A T451A3005/U Line Voltage Thermostat, 120-227 VAC, 19-22 A, Non-Programmable Programmability
Honeywell T451A T451A3005/U Line Voltage Thermostat, 120-227 VAC, 19-22 A, Non-Programmable Programmability
Honeywell Line Voltage Thermostat, Model: T451A, 120-227 VAC, 19-22 A, 50/60 Hz, Non-Programmable Programmability, SPST Switch, Resistive: 22 A at 120 - 240 VAC and 19 A at 277 VAC, 9.8 A Full Load/58.8 A Locked Rotor at 120 VAC, 5.6 A Full Load/33.6 A Locked Rotor at 208 VAC, 4.9 A Full Load/29.4 A Locked Rotor at 240 VAC, 4.2 A Full Load/25.2 A Locked Rotor at 277 VAC, 125 V-A Pilot Duty Contact Rating, Vapor Filled Dual Diaphragm Sensing Element, 2 deg F Differential Temperature, 44 to 86 deg F Temperature Settings, Horizontal, Vertical Mounting, Flylead Connection, Beige, 4-1/2 in H x 2-15/16 in W x 1-1/2 in D
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$299.95Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandHoneywell
Amperage Rating19-22
ApplicationFor line voltage valves, motors, contractors, electric heat, elements, duct furnaces and fan coil units in heating
ColorBeige
Connection TypeFlylead
Contact RatingResistive: 22 A at 120 - 240 VAC and 19 A at 277 VAC, 9.8 A Full Load/58.8 A Locked Rotor at 120 VAC, 5.6 A Full Load/33.6 A Locked Rotor at 208 VAC, 4.9 A Full Load/29.4 A Locked Rotor at 240 VAC, 4.2 A Full Load/25.2 A Locked Rotor at 277 VAC, 125 V-A P
Differential Temperature2
Dimensions4-1/2 " H x 2-15/16 " W x 1-1/2 " D
Frequency Rating50/60
IncludesVertical Scaleplate with Thermometer, Range Stops and Locking Cover Screws, Wallplate, High Accuracy Dual Diaphragm Sensor
ModelT451A
Mounting TypeHorizontal, Vertical
ProgrammabilityNon-Programmable
Sensing ElementVapor Filled Dual Diaphragm
Switch TypeSPST
Temperature Settings44 to 86
Voltage Rating120-227
Additional Information
UL E4436, Guider XAPX, CSA LR1322 Certified, UN 2037
Features & Benefits
- Automatic cooling and heating anticipation Mount on standard vertical or horizontal outlet box Receptacles, small, containing gas, 2.1 hazmat information
Documents
Honeywell T451A T451A3005/U Line Voltage Thermostat, 120-227 VAC, 19-22 A, Non-Programmable Programmability
BrandHoneywell
MFG #T451A3005/U
Keller #491624
My Part ##
Last Ordered#
$299.95Â /Â ea
