VICF V020728CT0 2 FPV 728 UL/FM/ULC TXT T HW B020466TW2 FIRELOCK VALVE
VICF V020728CT0 2 FPV 728 UL/FM/ULC TXT T HW B020466TW2 FIRELOCK VALVE

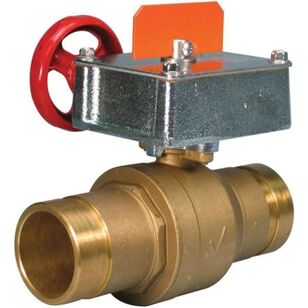

Victaulic® Ball Valve, 728 Series, 2 in Nominal, NPT Connection, Full Port, 365 psi, 4.33 in Inlet to Outlet Length, 3.15 in Top to Inlet Center, Handwheel Operator, Material Standard: ASTM B124, ASTM B16 C36000, Brass Body, TFE Seat, Stainless Steel Stem, Brass/Ductile Iron/Stainless Steel Trim, Brass Ball, TFE Softgoods, Finish: Chrome-Plated, 3.38 in OD x 5.49 in H x 4.86 in D
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,079.00 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandVictaulic®
Ball MaterialBrass
Body MaterialBrass
Connection TypeNPT
Dimensions3.38 " OD x 5.49 " H x 4.86 " D
FinishChrome-Plated
Inlet to Outlet Length4.33
Material StandardASTM B124, ASTM B16 C36000
Nominal Size2
Operator TypeHandwheel
Port TypeFull
Pressure Rating365
Seat MaterialTFE
Series728 Series
Softgoods MaterialTFE
Stem MaterialStainless Steel
Top to Inlet Center3.15
Trim MaterialBrass/Ductile Iron/Stainless Steel
Additional Information
FM 1112|UL 1091|cUL Listed|LPBC Certified|VdS Approved
Features & Benefits
- Standard port and supervisory switch
Documents
Marketing Information
The series 728 FireLock™ valve is a full port, ball valve that is UL/FM-rated for 365 psi/25 bar service in all sizes (LPCB and VdS listed for 20 bar services). Available with grooved or threaded ends (NPT), the valve body is brass. The ball is chrome-plated brass with a stainless steel stem. Reinforced seats aid ease of operation and provide a durable, corrosion-free seat. Flow characteristics exceed UL specification 1091 and FM approval standard 1112. The valve is approved for indoor and outdoor use.
VICF V020728CT0 2 FPV 728 UL/FM/ULC TXT T HW B020466TW2 FIRELOCK VALVE
BrandVictaulic®
MFG #V020728CT0
Keller #491940
My Part ##
Last Ordered#
$1,079.00 / ea
