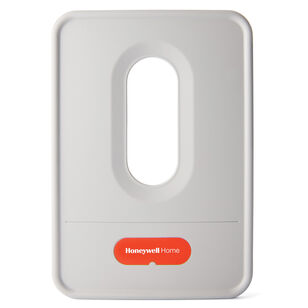

Honeywell TrueZONE® HZ322 Panel, 18 to 30 VAC, Gray, 8 in L x 1.86 in W x 11.5 in H, Import
Honeywell TrueZONE® HZ322 Panel, 18 to 30 VAC, Gray, 8 in L x 1.86 in W x 11.5 in H, Import
Honeywell TrueZONE® Panel, 18 to 30 VAC, VA Rating: 7.5 VA, 50/60 Hz, 3 Zones, Auto, Solid Wired Connection, 5 to 90% RH Non-Condensing Humidity Rating, 2 Cool/2 Heat Stages, Push Terminal, 18/20 AWG Wire, Gray, -40 to 165 deg F, 8 in L x 1.86 in W x 11.5 in H, Domestic/Import: Import
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$599.67 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandHoneywell
ChangeoverAuto
ColorGray
Connection TypeSolid Wired
Dimensions8 " L x 1.86 " W x 11.5 " H
Domestic/ImportImport
Frequency Rating50/60
Humidity Rating5 to 90% RH Non-Condensing
IncludesAT140 Transformer and C7735A Discharge Air Temperature Sensor
Number of Zones3
Stages2 Cool/2 Heat
Temperature Rating-40 to 165
Terminal TypePush
VA Rating7.5
Voltage Rating18 to 30
Warranty5 Year
Wire Size18/20
Shipping Dimensions (L x W x H)11.8" x 8.5" x 2.4"
Additional Information
FCC Class B Part 15
Features & Benefits
- Standard checkout procedure Robust push terminals Common-sense led's Clean, professional installation Smaller footprint Variable speed fan control RedLINK™ enabled for wireless operation when used with THM4000R1000 wireless adapter Controls up to 2 heat/2 cool conventional or 2 heat/1 cool heat pump
Documents
Marketing Information
This TrueZONE® HZ322 Panel is for use with conventional and heat pump applications. It can be used with up to 3 zones. Complete with Intuitive Installer setup, the easy to follow, digital display uses real language to guide users through four easy steps.
Honeywell TrueZONE® HZ322 Panel, 18 to 30 VAC, Gray, 8 in L x 1.86 in W x 11.5 in H, Import
BrandHoneywell
MFG #HZ322/U
