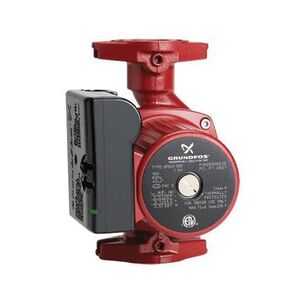

Grundfos UPS Series UPS 43-100 F 95906637 Circulator Pump, 65 gpm, 370 W, 230 V, 1.2/1.5/1.7 A, 60 Hz
Grundfos UPS Series UPS 43-100 F 95906637 Circulator Pump, 65 gpm, 370 W, 230 V, 1.2/1.5/1.7 A, 60 Hz
Grundfos Circulator Pump, Series: UPS, Model: UPS 43-100 F, 65 gpm Flow Rate, 30.84 ft Maximum Head, 370 W Power, 230 V, 1.2/1.5/1.7 A, 60 Hz Frequency, 145.04 psi Maximum, HP Rating: 0.3554 hp, 2 in Connection, Flange Connection, 1 ph Phase, 2 Pole, 32 to 230 deg F, Axial, Radial Bearing, Cast Iron/Composite/PES, Dimensions: 8-1/2 in H, Additional Information: 8-1/2 in L Port-to-Port
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$643.00Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandGrundfos
Additional Information8-1/2 " L Port-to-Port
Amperage Rating1.2/1.5/1.7
Bearing TypeAxial, Radial
Connection Size2
Connection TypeFlange
Dimensions8-1/2 " H
Flow Rate65
Frequency Rating60
HP Rating0.3554
MaterialCast Iron/Composite/PES
Maximum Head30.84
Maximum Pressure145.04
ModelUPS 43-100 F
Number of Poles2
Phase1
Power Rating370
SeriesUPS
Temperature Rating32 to 230
Voltage Rating230
Additional Information
CSA Certified|EN-GJL-200 Specified|ETL Specified
Features & Benefits
- Ceramic shaft and radial bearings Carbon axial bearing Stainless steel rotor can and bearing plate Corrosion-resistant impeller, composite, PES
Marketing Information
The pump is of the canned rotor type, i.e. pump and motor form an integral unit without shaft seal and with only two gaskets for sealing. The bearings are lubricated by the pumped liquid. The motor is a 1 ph motor. No additional motor protection is required.
Grundfos UPS Series UPS 43-100 F 95906637 Circulator Pump, 65 gpm, 370 W, 230 V, 1.2/1.5/1.7 A, 60 Hz
BrandGrundfos
MFG #95906637
Keller #493273
My Part ##
Last Ordered#
$643.00Â /Â ea
