CAN/ULC S604/MH7399|cULus Listed|UL 103 HT

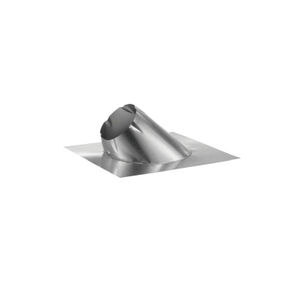

• Use to weather-proof the penetration of chimney pipe through the roof Storm collar required Select roof flashing based on pitch of roof, for example, a 6/12 pitch has a vertical rise of 6 in over a horizontal distance of 12 in

With a thermal Tech blanket insulation encased between dual walls, DuraTech® offers the optimum in safety and performance. It keeps the outer wall of the chimney cool, while ensuring high flue gas temperatures for optimum draft performance. The inner wall is 25% thicker than competitive chimneys for an extra margin of safety. No locking bands or mechanical fasteners required. DuraTech's sleek 1 in wall design provides for easy installations through 16 in on center framing. For tight installations, a reduced clearance square ceiling support box is available (6 in Dia DuraTech® only). Designed for normal, continuous operation at 1000 deg F flue gas temperatures, DuraTech® is subjected to rigorous and stringent high temperature requirements of the UL standard, including 1 hr at 1400 deg F, plus three 10 min chimney fire test at 2100 deg F.
