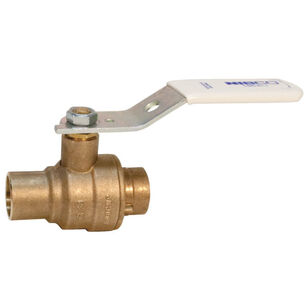

NIBCO® S-685-80-LF Series NJ99018 Ball Valve, 3/4 in, Female C, Silicon Bronze Alloy, 600 psi
NIBCO® S-685-80-LF Series NJ99018 Ball Valve, 3/4 in, Female C, Silicon Bronze Alloy, 600 psi
NIBCO® Ball Valve, S-685-80-LF Series, 3/4 in Nominal, Female C Connection, Full Port, 2-Piece, 600 psi, 3/4 in Orifice, 2.66 in Inlet to Outlet Length, 2.3 in Top to Inlet Center, Quarter-Turn Lever Handle Operator, Material Standard: ASTM B16 UNS C36000, ASTM B371 UNS C69300, ASTM B283 UNS C69300, Silicon Bronze Alloy Body, Virgin PTFE Seat, Virgin PTFE Stem, EPDM/RPTFE Seal, Virgin PTFE Packing, Steel Handle, Silicon Bronze Alloy Ball, Lead-Free, 300 deg F, 6.23 in L x 1.64 in W x 3.18 in H
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$129.70 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandNIBCO®
ApplicationFor commercial and residential applications
Ball MaterialSilicon Bronze Alloy
Body MaterialSilicon Bronze Alloy
Configuration2-Piece
Connection TypeFemale C
Dimensions6.23 " L x 1.64 " W x 3.18 " H
Handle MaterialSteel
IndustryPlumbing
Inlet to Outlet Length2.66
Lead-FreeYes
Material StandardASTM B16 UNS C36000, ASTM B371 UNS C69300, ASTM B283 UNS C69300
Nominal Size3/4
Operator TypeQuarter-Turn Lever Handle
Orifice Size3/4
Packing MaterialVirgin PTFE
Port TypeFull
Pressure Rating600
Seal MaterialEPDM/RPTFE
Seat MaterialVirgin PTFE
SeriesS-685-80-LF Series
Stem MaterialVirgin PTFE
Temperature Rating300
Top to Inlet Center2.3
Warranty5 Year Limited
Additional Information
MSS SP-110|NSF/ANSI/CAN 61/372
Features & Benefits
- Valve pressure rating 600 psi non-shock cold working pressure Silicon performance Bronze® ball and stem Blow-out-proof stem White handle for easy lead-free identification NIBCO® double-oval lead-free body marking Dezincification-resistant
Marketing Information
The NIBCO® lead-free ball valve features solder ends for easy installation. The valve is constructed of lead-free dezincification-resistant (DZR) high quality performance bronze silicon alloy per ASTM specifications. The two-piece valve is recommended for applications that deliver water for human consumption, including commercial and residential construction.
