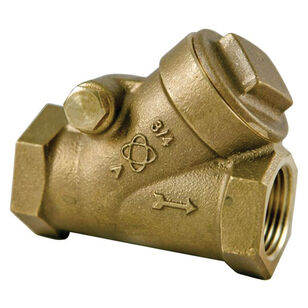

NIBCO® T-413-Y-LF Series NL740X8 Horizontal Swing Check Valve, 3/4 in, FNPT, Lead-Free, Silicon Bronze
NIBCO® T-413-Y-LF Series NL740X8 Horizontal Swing Check Valve, 3/4 in, FNPT, Lead-Free, Silicon Bronze
NIBCO® Horizontal Swing Check Valve, T-413-Y-LF Series, 3/4 in Nominal, FNPT Connection, 200 psi, Pressure Class: 125 lb, 300 deg F, Steam Media, 2.9 in Inlet to Outlet Length, 1.88 in Top to Inlet Center, 1.04 in Opening, Silicon Bronze Body, PTFE Seat, PTFE Disc, Silicon Bronze Trim, Silicon Bronze Softgoods, Lead-Free, Domestic/Import: Domestic
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$312.80 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandNIBCO®
ApplicationFor commercial and industrial applications
Body MaterialSilicon Bronze
Connection TypeFNPT
Disc MaterialPTFE
Domestic/ImportDomestic
IndustryPlumbing
Inlet to Outlet Length2.9
Lead-FreeYes
MediaSteam
Nominal Size3/4
Opening Size1.04
Pressure Class125
Pressure Rating200
Seat MaterialPTFE
SeriesT-413-Y-LF Series
Softgoods MaterialSilicon Bronze
Temperature Rating300
Top to Inlet Center1.88
Trim MaterialSilicon Bronze
Warranty5 Year
Additional Information
MSS SP-80|NSF Approved|ANSI 61/372
Features & Benefits
- Y-pattern Renewable bronze disc Regrindable seat NIBCO® double oval lead-free body marking
Documents
Marketing Information
The NIBCO® horizontal swing check valve has a Y-pattern design with renewable seat and disc. The swing check valve prevents backflow by automatically closing when fluid reverses direction. The check valve features threaded end connections for ease of installation. The check valve is constructed of high-quality lead-free dezincification-resistant performance bronze silicone alloy per ASTM specifications. The lead-free valve is recommended for applications that deliver water for human consumption, including commercial and residential construction. The NIBCO® check valve features a screw-in bonnet for accessibility to repair or replace parts. Swing check valves may be installed in horizontal positions (or vertical with flow moving up). Choose NIBCO® valves for the most specified, versatile and economical valve option in commercial and residential applications. NIBCO® valves are backed by the NIBCO® 5 Year 125% limited warranty.
NIBCO® T-413-Y-LF Series NL740X8 Horizontal Swing Check Valve, 3/4 in, FNPT, Lead-Free, Silicon Bronze
BrandNIBCO®
MFG #NL740X8
Keller #493602
My Part ##
Last Ordered#
$312.80 / ea
