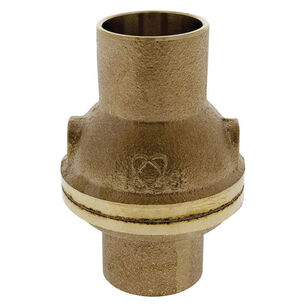

NIBCO S-480-Y-LF-2IN BRZ RING CKV
NIBCO S-480-Y-LF-2IN BRZ RING CKV
NIBCO® Ring Check Valve, S480-Y-LF Series, 2 in Nominal, Cup Connection, 100 psi, Pressure Class: 125 lb, 300 deg F, Water Media, 4.9 in Inlet to Outlet Length, 3.72 in Opening, Silicon Bronze Body, Stainless Steel Alloy Stem, PTFE Disc, Lead-Free, 3.69 in L x 3.38 in W
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$632.00 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandNIBCO®
ApplicationFor commercial and industrial applications
Body MaterialSilicon Bronze
Connection TypeCup
Dimensions3.69 " L x 3.38 " W
Disc MaterialPTFE
IndustryPlumbing
Inlet to Outlet Length4.9
Lead-FreeYes
MediaWater
Nominal Size2
Opening Size3.72
Pressure Class125
Pressure Rating100
SeriesS480-Y-LF Series
Stem MaterialStainless Steel Alloy
Temperature Rating300
Warranty5 Year Limited
Additional Information
MSS SP-139|NSF Approved|ANSI 61/372
Features & Benefits
- Spring actuated NIBCO® double oval lead-free body marking Resilient discs
Documents
Marketing Information
The NIBCO® ring Check® valve is constructed of high-quality lead-free dezincification-resistant (DZR) performance bronze silicon alloy per ASTM specifications. The ring Check® valve is uniquely designed with an inline, spring assisted self-closing disc. The lift check valve prevents backflow by automatically closing when fluid reverses direction. The lead-free valve is recommended for applications that deliver water for human consumption, including commercial and residential construction. The NIBCO® ring Check® valve has solder end connections for ease of installation. This check valve may be installed in horizontal positions or vertical with flow moving up. Choose NIBCO® valves for the most specified, versatile and economical valve option in commercial and residential applications. NIBCO® valves are backed by the NIBCO® 5 Year 125% limited warranty.
NIBCO S-480-Y-LF-2IN BRZ RING CKV
BrandNIBCO®
MFG #NJ7Q2XD
Keller #493620
My Part ##
Last Ordered#
$632.00 / ea
