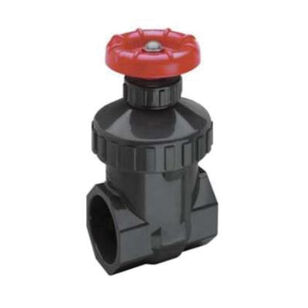

Spears® 2012-007 Gate Valve, 3/4 in, Socket, PVC, 200 psi
Spears® 2012-007 Gate Valve, 3/4 in, Socket, PVC, 200 psi
Spears® Gate Valve, 3/4 in Nominal, Socket Connection, 200 psi, Water Media, 2-13/16 in Inlet to Outlet Length, 4-1/32 in Top to Inlet Center, PVC Body, Polypropylene Handle, Buna-N/Polypropylene Softgoods, Handwheel Operator, 37 Cv Flow Coefficient (Cv), 73 deg F, Gray, 2-13/16 in L x 5 in H, Domestic/Import: Domestic
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$65.08 / ea
In Stock
- Attributes
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandSpears®
ApplicationFor a variety of chemical, industrial and irrigation applications
Body MaterialPVC
ColorGray
Connection TypeSocket
Dimensions2-13/16 " L x 5 " H
Domestic/ImportDomestic
Flow Coefficient (Cv)37
Handle MaterialPolypropylene
IndustryPlumbing
Inlet to Outlet Length2-13/16
MediaWater
Nominal Size3/4
Operator TypeHandwheel
Pressure Rating200
Softgoods MaterialBuna-N/Polypropylene
Temperature Rating73
Top to Inlet Center4-1/32
WarrantyLimited Lifetime
Features & Benefits
- Heavy bodied PVC construction Tapered wedge with specially designed sealing surface Non-rising stem design Patented strain equalizing stem/wedge thread O-ring stem seals instead of packing - no retightening required Positive grip, high-impact polypropylene hand wheel operator Fully serviceable, replaceable components - accessible without valve removal EPDM gate valves NSF® certified for potable water use Suitable for vacuum service Assembled with silicone-free, water soluble lubricant
Documents
Marketing Information
This solid, proven design is well-suited for a variety of chemical, industrial and irrigation applications. Spears® gate valves are feature packed with a variety of end connector options. Individual special features are found in each size range 1/2 in through 2, 2-1/2 and 3 in and in the full featured heavy industrial 4 in valve.
