ANSI A112.26.2|ASSE 1003|CSA B356|Military Standard MIL-V-18146B Type I|IAPMO Approved|Southern Standard Plumbing Code Certified

• Standard construction includes Z3 sealed spring cage and stainless steel corrosion-resistant adjusting and cage screws for accessible outdoor or pit installations Integral stainless steel strainer Serviceable in line Bypass feature controls thermal expansion pressure High-temperature resistant reinforced diaphragm for hot water Replaceable engineered polymer seat Reinforced EPDM with PTFE wetted surface diaphragm 300 lb/sq-in maximum working pressure and 50 lb/sq-in standard reduced pressure setting Sealed spring cage and stainless steel corrosion-resistant adjusting and cage screws for accessible outdoor or pit installation

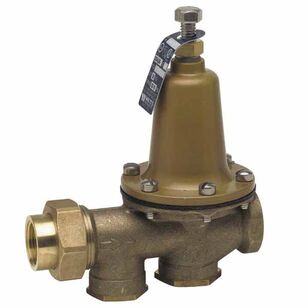

WATTS® Regulators Series LF25AUB-Z3 lead-free water pressure reducing valves are used in commercial and residential applications to reduce incoming water pressure for protection of plumbing system components and to reduce water consumption. It consists of a lead-free copper silicon alloy body construction, union inlet connection, integral stainless steel strainer and high-temperature-resistant reinforced diaphragm for hot water. The Series LF25AUB-Z3 is available with a variety of end connections including - threaded, solder, PEX, quick-connect and CPVC with both union and double union connections. Series LF25AUB-Z3 has an adjustable pressure range and is serviceable in-line. All parts are quickly and easily serviceable without removing the valve from the line. The standard bypass feature permits the flow of water back through the valve into the main when pressures, due to thermal expansion on the outlet side of the valve, exceed the pressure in the main supply.
