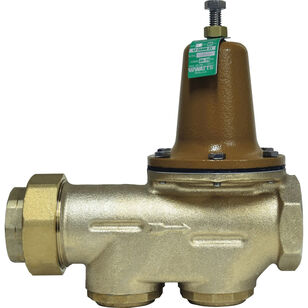

WATTS® LF25AUB-Z3 Series 0009431 Water Pressure Reducing Valve, 1-1/2 in Nominal, FNPT, 300 psi, 33 to 180 deg F
WATTS® LF25AUB-Z3 Series 0009431 Water Pressure Reducing Valve, 1-1/2 in Nominal, FNPT, 300 psi, 33 to 180 deg F
WATTS® Water Pressure Reducing Valve, LF25AUB-Z3 Series, 1-1/2 in Nominal, FNPT Connection, 300 psi, Water Media, 9 in Inlet to Outlet Length, Copper Silicone Body, Stainless Steel Seat, EPDM Disc, Stainless Steel Trim, EPDM/PTFE Softgoods, Lead-Free, 33 to 180 deg F, 9-1/2 in H
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$2,391.00 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandWATTS®
Body MaterialCopper Silicone
Connection TypeFNPT
Dimensions9-1/2 " H
Disc MaterialEPDM
Inlet to Outlet Length9
MediaWater
Nominal Size1-1/2
Pressure Rating300
Seat MaterialStainless Steel
SeriesLF25AUB-Z3 Series
Softgoods MaterialEPDM/PTFE
Temperature Rating33 to 180
Trim MaterialStainless Steel
WarrantyLimited
Additional Information
ANSI A112.26.2|ASSE 1003|CSA B356|IAPMO Listed|Military Standard MIL-V-18146B Type I|NSF Certified|Southern Standard Plumbing Code Certified|UPC Listed
Features & Benefits
- Sealed spring cage with stainless steel cage screws Integral stainless steel strainer removable for cleaning Serviceable in line Bypass feature controls thermal expansion pressure High-temperature resistant reinforced diaphragm for hot water Replaceable seat module Reinforced EPDM with PTFE wetted surface diaphragm
Marketing Information
This 1-1/2 in lead-free water pressure reducing valve is designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial and residential applications. The easy maintenance assembly consists of a replaceable seat module, NPT threaded female union inlet by FNPT outlet and a bypass feature to control thermal expansion pressure. The temperature range is 33 to 180 deg F (0.5 to 82 deg C). Suitable for up to 300 psi (20.7 bar), the pressure range can be adjusted from 25 to 75 psi (172 to 517 kPa) with the standard setting at 50 psi (345 kPa).
