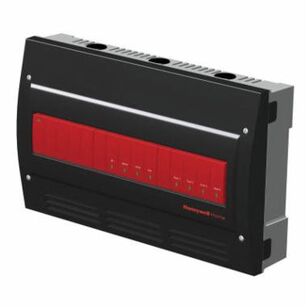

Honeywell AQ25042B Aquatrol Boiler Control Panel, User Interface: DIP Switch, 4 -Zone, 32 - 130 deg F Control
Honeywell AQ25042B Aquatrol Boiler Control Panel, User Interface: DIP Switch, 4 -Zone, 32 - 130 deg F Control
Honeywell Aquatrol Boiler Control Panel, Series: AQ250, 120 V at 60 Hz Power Supply, User Interface: DIP Switch, 4 -Zone, 32 - 130 deg F Control, 24 VAC, 0.5 A, 12 V-A (T-T) Boiler Output, 120 - 240 VAC, 1/3 hp (ZR-ZC) Contact, 10 ft L Lead, -58 to 230 deg F Sensing, 18 AWG Wire, Wire Clamp Screw Terminal Connection, 8 in W x 13 in H x 3-3/8 in D
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,008.11Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandHoneywell
Boiler Output24 VAC, 0.5 A, 12 V-A (T-T)
Connection TypeWire Clamp Screw Terminal
Contact Rating120 - 240 VAC, 1/3 hp (ZR-ZC)
Control Range32 - 130
Dimensions8 " W x 13 " H x 3-3/8 " D
IndustryHVAC
Lead Length10
Number of Zones4
Power Supply120 V at 60 Hz
Sensing Range-58 to 230
SeriesAQ250
User InterfaceDIP Switch
Wire Size18
Additional Information
C/US CSA Certified, UL Listed, file Number LR76030
Features & Benefits
- Use with AQ1000 two-wire communicating thermostats or most dry contact digital thermostats Offers zoning control for up to four zones and controls up to two stages of heat from a single thermostat Can expand upto 16 zones with AQ255 or AQ257 or upto 64 zones with AQ254 add-A-temp panels Line or low-voltage output for zoning equipment, including pumps or valves Features zone synchronization through the zone or greatest demand control Includes domestic hot water priority, priority override protection and boiler short cycling protection Automated test feature for quick start-up and simplified troubleshooting
Marketing Information
Honeywell AQ250 Aquatrol boiler controls for single temperature, residential hydronic heating systems ensure ample supply of hot water for space heating and domestic uses, convert single zone heating systems or upgrade relay-logic zoning systems.
Honeywell AQ25042B Aquatrol Boiler Control Panel, User Interface: DIP Switch, 4 -Zone, 32 - 130 deg F Control
BrandHoneywell
MFG #AQ25042B/U
Keller #496663
My Part ##
Last Ordered#
$1,008.11Â /Â ea
