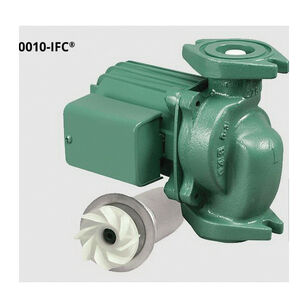

Taco Comfort Solutions® 0010-IFC 0010-SF3-IFC Cartridge Circulator Pump, 30 gpm, 115 V, 1.17 A, 60 Hz, 3250 rpm Motor
Taco Comfort Solutions® 0010-IFC 0010-SF3-IFC Cartridge Circulator Pump, 30 gpm, 115 V, 1.17 A, 60 Hz, 3250 rpm Motor
Taco Comfort Solutions® Cartridge Circulator Pump, Model: 0010-IFC, 30 gpm Flow Rate, 9 ft Maximum Head, 115 V, 1.17 A, 60 Hz, 125 psi Maximum Pressure, 3250 rpm Motor Speed Rating, 1/8 hp, 3/4 in, 1 in, 1-1/4 in, 1-1/2 in Connection, Flanged Connection, 1 ph Phase, 230 deg F Fluid, Stainless Steel, 6-3/8 in H x 7-1/4 in W, Additional Information: Non-Metallic Impeller Material
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,246.00 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandTaco Comfort Solutions®
Additional InformationNon-Metallic Impeller Material
Amperage Rating1.17
Connection Size3/4 ", 1 ", 1-1/4 ", 1-1/2 "
Connection TypeFlanged
Dimensions6-3/8 " H x 7-1/4 " W
Flow Rate30
Frequency Rating60
HP Rating1/8
IndustryHydronics
MaterialStainless Steel
Maximum Head9
Maximum Pressure125
Model0010-IFC
Motor Speed Rating3250
Phase1
Temperature Rating230 deg F Fluid
Voltage Rating115
Additional Information
ANSI/NSF 372|cULus Listed
Features & Benefits
- Ceramic shaft and radial bearings Carbon axial bearing Stainless steel rotor can and bearing plate Corrosion-resistant impeller, composite, PES Standard high capacity output - compact design Acetal body plunger Aluminum stator housing, stainless steel cartridge, ceramic shaft, carbon bearing, EPDM O-ring and gaskets
Marketing Information
The high velocity series 0010-IFC includes an Integral Flow Check, saving installation costs while improving system performance. The removable, spring-loaded IFC replaces a separate in-line flow check and prevents gravity flow when the circulator is not operating. Available in cast iron or stainless steel construction.
Taco Comfort Solutions® 0010-IFC 0010-SF3-IFC Cartridge Circulator Pump, 30 gpm, 115 V, 1.17 A, 60 Hz, 3250 rpm Motor
BrandTaco Comfort Solutions®
MFG #0010-SF3-IFC
Keller #497367
