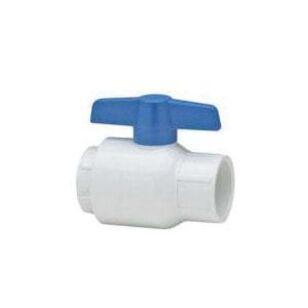

SPEARS 2622-060 6IN UTIL BALL VLV
SPEARS 2622-060 6IN UTIL BALL VLV
Spears® Utility Ball Valve, 6 in Nominal, Socket Connection, Full Port, 150 psi, Water Media, 14-3/16 in Inlet to Outlet Length, 8-5/32 in Top to Inlet Center, Lever Handle Operator, 7942 Cv Flow Coefficient (Cv), Material Standard: ASTM D1784 Type I, PVC Body, HDPE/PTFE Seat, HDPE/PTFE Trim, Polypropylene Handle, Thermoplastic Ball, EPDM Softgoods, White, 73 deg F
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$771.57 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandSpears®
Ball MaterialThermoplastic
Body MaterialPVC
ColorWhite
Connection TypeSocket
Flow Coefficient (Cv)7942
Handle MaterialPolypropylene
Inlet to Outlet Length14-3/16
Material StandardASTM D1784 Type I
MediaWater
Nominal Size6
Operator TypeLever Handle
Port TypeFull
Pressure Rating150
Seat MaterialHDPE/PTFE
Softgoods MaterialEPDM
Temperature Rating73
Top to Inlet Center8-5/32
Trim MaterialHDPE/PTFE
Additional Information
NSF Approved
Features & Benefits
- Chemical and corrosion-resistant PVC or CPVC construction Economical sealed unit Schedule 80 full port design High impact polypropylene handle Spears® single O-ring Safe-T-Shear® stem design PTFE/HDPE floating seat design Assembled with silicone-free, water soluble lubricant
Marketing Information
A high quality, economical quarter-turn shut-off valve designed for irrigation, pool and spa and general purpose applications. IPS sizes 1/2 to 3 in available in PVC white, PVC gray or CPVC with socket or threaded end connectors. Size 4 in available in PVC white with socket or threaded end connectors. 6 in size available in PVC white with socket end connectors and high-efficiency lever-style handle for easier operation.
