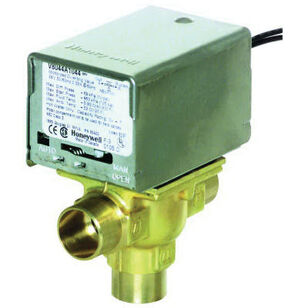

Honeywell 1000 Series V4044A1191/U Motorized Zone Valve, 3/4 in, Sweat, 7 Cv, Brass
Honeywell 1000 Series V4044A1191/U Motorized Zone Valve, 3/4 in, Sweat, 7 Cv, Brass
Honeywell Motorized Zone Valve, 1000 Series, 3/4 in Nominal, Sweat Connection, Number of Ways/Position: 3-Ways, 2-Position, 125 lbf/sq-in, 7 Cv Flow Coefficient (Cv), Stainless Steel Stem, Buna-N Trim, Buna-N Disc, Brass Seat, EPDM Seal, Brass, 9.6 VA Power Consumption, Hot or Chilled Water Service, Normally Open, Normally Closed, 0.08 A, 120 VAC, 125 deg F, 4-13/16 in H x 3-1/2 in W x 2-3/8 in D
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$400.08Â /Â ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
Brandresideo
Amperage Rating0.08
ConfigurationNormally Open, Normally Closed
Connection TypeSweat
Dimensions4-13/16 " H x 3-1/2 " W x 2-3/8 " D
Disc MaterialBuna-N
Flow Coefficient (Cv)7
MaterialBrass
Nominal Size3/4
Number of Ways/Position3-Ways, 2-Position
Power Consumption9.6
Pressure Rating125
Seal MaterialEPDM
Seat MaterialBrass
Series1000 Series
Service TypeHot or Chilled Water
Stem MaterialStainless Steel
Temperature Rating125
Trim MaterialBuna-N
Voltage Rating120
Additional Information
UL Listed, file MH11826
Features & Benefits
- On-off and diverting line voltage valves consist of an actuator motor and valve assembly for controlling the flow of hot or chilled water Manual opener for valve operation on power failure, valve returns to automatic position when power is restored All model may be installed without disassembling the valve Compact construction for easy installation Complete power head may be removed or replaced without breaking plumbing line connections or draining the system Motor may be replaced without removing the valve body or draining the system The valve can be mounted in any position on a vertical line Use this valve in closed loop hydronic systems that do not contain dissolved oxygen in system water, such as fresh water from frequent source of makeup water 30 s nominal open timing 18 in standard wire lead electrical connection Spring return to port a close valve action Buna-N (NBR) rubber plug Brass case, sector gears, stainless steel cover actuator
