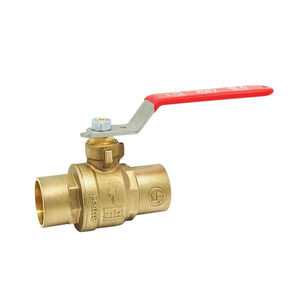

RWV® ECO-VALVE 5549AB Series 5549AB 1-1/2 Ball Valve, 1-1/2 in, Solder, Brass, 150 psi WSP, 600 psi WOG
RWV® ECO-VALVE 5549AB Series 5549AB 1-1/2 Ball Valve, 1-1/2 in, Solder, Brass, 150 psi WSP, 600 psi WOG
RWV® ECO-VALVE Ball Valve, 5549AB Series, 1-1/2 in Nominal, Solder Connection, Full Port, 2-Piece, 150 psi WSP, 600 psi WOG, Gas, Oil, Steam, Water Media, 1.46 in Orifice, 4.26 in Inlet to Outlet Length, 3.14 in Top to Inlet Center, 1.628 to 1.632 in Opening, Lever Handle Operator, 111 Cv Flow Coefficient (Cv), Material Standard: ASTM B927 C27450, ASTM B124 C37700, ASTM A36, Brass Body, PTFE Seat, Brass Stem, Brass/PTFE Trim, PTFE Packing, Steel Handle, Brass Ball, PTFE Softgoods, Lead-Free, 15 to 160 deg F, 4.26 in L
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$129.27 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandRWV®
ApplicationFor HVAC systems, oil, compressed air or gas distribution
Ball MaterialBrass
Body MaterialBrass
Configuration2-Piece
Connection TypeSolder
Dimensions4.26 " L
Flow Coefficient (Cv)111
Handle MaterialSteel
IndustryPlumbing
Inlet to Outlet Length4.26
Lead-FreeYes
Material StandardASTM B927 C27450, ASTM B124 C37700, ASTM A36
MediaGas, Oil, Steam, Water
Nominal Size1-1/2
Opening Size1.628 to 1.632
Operator TypeLever Handle
Orifice Size1.46
Packing MaterialPTFE
Port TypeFull
Pressure Rating150 psi WSP, 600 psi WOG
Seat MaterialPTFE
Series5549AB Series
Softgoods MaterialPTFE
Stem MaterialBrass
Temperature Rating15 to 160
Top to Inlet Center3.14
Trim MaterialBrass/PTFE
Additional Information
California AB1953|ANSI Z1157|ASME A112.4.14, B16.22|CSA B125.14|cTLus Listed|IAPMO Approved|MSS-SP-110|NSF 61-G, 372
Features & Benefits
- Chrome-plated ball Virgin PTFE seats Adjustable packing Blowout-proof stem
Marketing Information
Lead-free ball valves have spherical discs that control liquid or gas flow through a port by rotating to open or close the fluid passageway. Our lead-free ball valves offer tight shut-off, with a maximum operating temperature of 160 deg F and a maximum operating pressure of 600 psi. Different sizes are available to accommodate various flow rates.
RWV® ECO-VALVE 5549AB Series 5549AB 1-1/2 Ball Valve, 1-1/2 in, Solder, Brass, 150 psi WSP, 600 psi WOG
BrandRWV®
MFG #5549AB 1-1/2
Keller #498732
