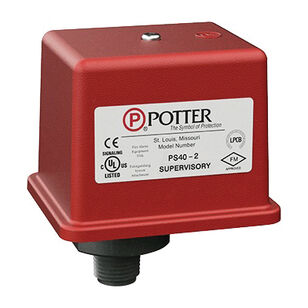

POTTER® PS40 Series 1340404 Low/High Supervisory Pressure Switch, 2 A, 10.1 A Contact, SPDT, 1/2 in, NPT, 40 psi
POTTER® PS40 Series 1340404 Low/High Supervisory Pressure Switch, 2 A, 10.1 A Contact, SPDT, 1/2 in, NPT, 40 psi
POTTER® Low/High Supervisory Pressure Switch, PS40 Series, 2 A, 10.1 A Contact Rating, 1/2 in Connection, NPT Connection, Contact Configuration: SPDT, 40 psi, -40 to 140 deg F, IP66, NEMA 4 Enclosure, 4.22 in H x 3.78 in W x 3.2 in D
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$304.57 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandPOTTER®
Connection Size1/2
Connection TypeNPT
Contact ConfigurationSPDT
Contact Rating2 A, 10.1 A
Dimensions4.22 " H x 3.78 " W x 3.2 " D
EnclosureIP66, NEMA 4
Pressure Rating40
SeriesPS40 Series
Temperature Rating-40 to 140
Additional Information
CE Marked|CSFM Listed|FM Approved|LPCB Approved|MEA Approved|NFPA 13/13D/13R/72|NYMEA Approved|UL/ULC Listed
Features & Benefits
- Independent switch adjustment on two-switch models, no tools needed Two 1/2 in conduit/cable entrances Separate isolated wiring chambers Non-corrosive pressure connection Non-conductive enclosure
Documents
Marketing Information
The POTTER® PS40 Series supervisory pressure actuated switches are designed primarily to detect an increase and/or decrease from normal system pressure in automatic fire sprinkler systems. Typical applications are: dry pipe systems, pre-action air/nitrogen supervision, pressure tanks, air supplies and water supplies. The PS40 switch is factory set for 40 psi normal system pressure. The switch marked with the word low is set to operate at a pressure decrease of 10 psi at 30 psi. The switch marked with the word high is set to operate at a pressure increase of 10 psi at 50 psi.
POTTER® PS40 Series 1340404 Low/High Supervisory Pressure Switch, 2 A, 10.1 A Contact, SPDT, 1/2 in, NPT, 40 psi
BrandPOTTER®
MFG #1340404
Keller #498850
My Part ##
Last Ordered#
$304.57 / ea
