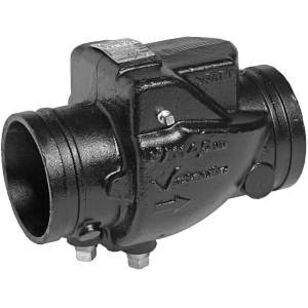

VICF V030717PE0 3 CKV 717 E PPS UL/ULC NO DRAIN TAP C030112800 FIRELOCK VALVE
VICF V030717PE0 3 CKV 717 E PPS UL/ULC NO DRAIN TAP C030112800 FIRELOCK VALVE
Victaulic® FIRELOCK™ Check Valve, 717 Series, 3 in Nominal, Grooved Connection, 365 psi, Water Media, 9.62 in Inlet to Outlet Length, 3.53 in Top to Inlet Center, 250 Cv Flow Coefficient (Cv), Material Standard: ASTM A536 Grade 65-45-12, Ductile Iron Body, Ductile Iron Seat, Elastomer Seal, Aluminum Bronze Disc, Aluminum/Bronze/Ductile Iron Trim, Elastomer Softgoods, Finish: Polyphenylene Sulfide-Coated, 5.06 in H, Domestic/Import: Domestic
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$824.50 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandVictaulic®
ApplicationFor fire protection systems
Body MaterialDuctile Iron
Connection TypeGrooved
Dimensions5.06 " H
Disc MaterialAluminum Bronze
Domestic/ImportDomestic
FinishPolyphenylene Sulfide-Coated
Flow Coefficient (Cv)250
Inlet to Outlet Length9.62
Material StandardASTM A536 Grade 65-45-12
MediaWater
Nominal Size3
Pressure Rating365
Seal MaterialElastomer
Seat MaterialDuctile Iron
Series717 Series
Softgoods MaterialElastomer
Top to Inlet Center3.53
Trim MaterialAluminum/Bronze/Ductile Iron
Additional Information
CCC Marked|CE Marked|cULus Listed|FM Approved|LPCB Listed|VDS Approved|UKCA Approved
Features & Benefits
- Features an elastomer encapsulated disc with an electroless nickel-plated seat Prevents backflow Single disc mechanism incorporates a spring-assisted feature for non-slamming operation Can be installed either vertically (flow upwards only) or horizontally Valve body cast with arrow indicator to assist with proper valve orientation Rated for ambient temperature use in fire protection systems
VICF V030717PE0 3 CKV 717 E PPS UL/ULC NO DRAIN TAP C030112800 FIRELOCK VALVE
BrandVictaulic®
MFG #V030717PE0
Keller #499065
My Part ##
Last Ordered#
$824.50 / ea
