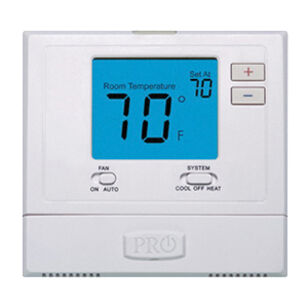

PRO1 T701 NON PROG 1H/1C STAT
PRO1 T701 NON PROG 1H/1C STAT
PRO1® Thermostat, T700 Series, 18 to 30 VAC, 1 to 1.5 A, 50/60 Hz Frequency, 1 Heat/1 Cool Stages, 4 sq-in Blue Backlight Display, 0.2 to 2 deg F Heating and Cooling Differential, 44 to 90 deg F Settings, 32 to 105 deg F Ambient, 90% Non-Condensing Humidity, (2) AA Alkaline Battery, +/-1 deg F Accuracy, Battery, Hardwired Power Source, Horizontal/Junction Box Mounting, Dimensions: 4.4 in H x 4.7 in W x 1.1 in D
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$121.97 / ea
In Stock
- Attributes
- Features & Benefits
- Documents
Attributes
BrandPRO1®
Accuracy+/-1 deg F
Amperage Rating1 to 1.5 A
ApplicationFor gas or electric and conventional systems
Battery Type(2) AA Alkaline
Differential Temperature0.2 to 2 deg F Heating and Cooling
Dimensions4.4" H x 4.7" W x 1.1" D
Display Type4 sq-in Blue Backlight
Frequency Rating50/60 Hz
Humidity Rating90% Non-Condensing
Mounting TypeHorizontal/Junction Box
Power SourceBattery, Hardwired
SeriesT700 Series
Stages1 Heat/1 Cool
Temperature Rating32 to 105 deg F Ambient
Temperature Settings44 to 90 deg F
Voltage Rating18 to 30 VAC
Warranty5 Year
Features & Benefits
- Glow in the dark light button
- Easy access battery compartment
- Separate heating and cooling swing (cycle rate) adjustments
- Room temperature calibration adjustments
- 5 min compressor delay protection (selectable on or off)
- Simple private label badge system
- Easy wire color-coded terminal blocks
- Universal sub-base
- Mounts on wall or junction box
- 41 - 95 deg F display
- Permanent memory back-up
