VICF V100717PE0 10 CKV 717 E UL/FM/ULC 1/2 NPT UPSTREAM/DOWNSTREAM C100141100 DOWNSTREAM TAPS BLK
VICF V100717PE0 10 CKV 717 E UL/FM/ULC 1/2 NPT UPSTREAM/DOWNSTREAM C100141100 DOWNSTREAM TAPS BLK

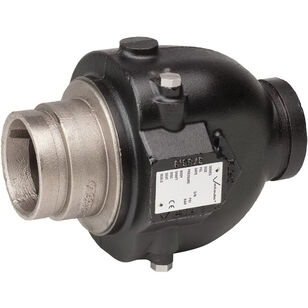

Victaulic® FireLock™ Check Valve, Series 717, 10 in Nominal, Grooved End, 365 psi, 3000 Cv Flow Coefficient (Cv), Material Standard: ASTM A536, Grade 65-45-12, Ductile Iron Body, Ductile Iron Seat, EPDM Seal, Elastomer Disc, Black, Finish: Painted, 17 in L x 12 in W
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$7,023.00 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandVictaulic®
Body MaterialDuctile Iron
ColorBlack
Dimensions17 " L x 12 " W
Disc MaterialElastomer
End TypeGrooved
FinishPainted
Flow Coefficient (Cv)3000
IndustryFire Protection
Material StandardASTM A536, Grade 65-45-12
Nominal Size10
Pressure Rating365
Seal MaterialEPDM
Seat MaterialDuctile Iron
SeriesSeries 717
Additional Information
cULus Listed|CCC Marked|FM Approved
Features & Benefits
- Designed for use in fire protection systems Prevents back flow Single disc mechanism incorporates a spring assisted feature for non-slamming operation Can be installed either vertically (flow upwards only) or horizontally Valve body cast with arrow indicator to assist with proper valve orientation Rated for ambient temperature use in fire protection systems
VICF V100717PE0 10 CKV 717 E UL/FM/ULC 1/2 NPT UPSTREAM/DOWNSTREAM C100141100 DOWNSTREAM TAPS BLK
BrandVictaulic®
MFG #V100717PE0
Keller #501394
My Part ##
Last Ordered#
$7,023.00 / ea
