VICF V120717PE0 12 CKV 717 E UL/FM/ULC 1/2 NPT UPSTREAM/ C120141100 DOWNSTREAM TAPS
VICF V120717PE0 12 CKV 717 E UL/FM/ULC 1/2 NPT UPSTREAM/ C120141100 DOWNSTREAM TAPS

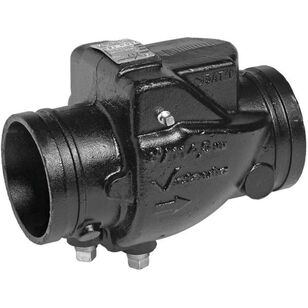

Victaulic® FireLock™ Check Valve, 717 Series, 12 in Nominal, NPT Connection, 365 psi, Water Media, 19-1/2 in Inlet to Outlet Length, 8.06 in Top to Inlet Center, 4200 Cv Flow Coefficient (Cv), Material Standard: ASTM A536/B733, Ductile Iron Body, Ductile Iron Seat, Nitrile/EPDM Seal, Ductile Iron Disc, EPDM Softgoods, 60 deg F, 12-3/4 in Dia x 19-1/2 in L
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$9,160.50 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandVictaulic®
Body MaterialDuctile Iron
Connection TypeNPT
Dimensions12-3/4 " Dia x 19-1/2 " L
Disc MaterialDuctile Iron
Flow Coefficient (Cv)4200
Inlet to Outlet Length19-1/2
Material StandardASTM A536/B733
MediaWater
Nominal Size12
Pressure Rating365
Seal MaterialNitrile/EPDM
Seat MaterialDuctile Iron
Series717 Series
Softgoods MaterialEPDM
Temperature Rating60
Top to Inlet Center8.06
Additional Information
cULus Listed|FM Approved|LPCB prEN 12259-9:2004 Cert/LPCB Ref. 104d/01|VDE Approved|CCC Certified
Features & Benefits
- Features an elastomer encapsulated disc with an electroless nickel-plated seat
VICF V120717PE0 12 CKV 717 E UL/FM/ULC 1/2 NPT UPSTREAM/ C120141100 DOWNSTREAM TAPS
BrandVictaulic®
MFG #V120717PE0
Keller #501395
