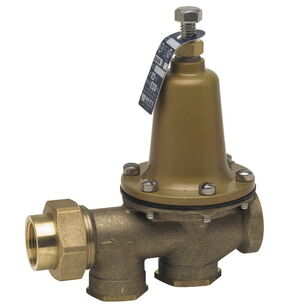

WATTS® LF25AUB-Z3 Series 9392 Water Pressure Reducing Valve, 1-1/4 in Nominal, FNPT x NPT, 25 to 75 psi, 33 to 160 deg F
WATTS® LF25AUB-Z3 Series 9392 Water Pressure Reducing Valve, 1-1/4 in Nominal, FNPT x NPT, 25 to 75 psi, 33 to 160 deg F
WATTS® Water Pressure Reducing Valve, LF25AUB-Z3 Series, 1-1/4 in Nominal, FNPT x NPT Connection, 25 to 75 psi, Water Media, Copper Silicon Body, Engineered Polymer Seat, EPDM Disc, Lead-Free, 33 to 160 deg F, 8-3/4 in L x 9 in H
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,794.00 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandWATTS®
ApplicationFor commercial and residential applications
Body MaterialCopper Silicon
Connection TypeFNPT x NPT
Dimensions8-3/4 " L x 9 " H
Disc MaterialEPDM
IndustryPlumbing
Lead-FreeYes
MediaWater
Nominal Size1-1/4
Pressure Rating25 to 75
Seat MaterialEngineered Polymer
SeriesLF25AUB-Z3 Series
Temperature Rating33 to 160
Additional Information
ANSI A112.26.2|ASSE 1003|CSA B356|Military Standard MIL-V-18146B Type I|IAPMO Approved|Southern Standard Plumbing Code Certified
Features & Benefits
- Standard construction includes Z3 sealed spring cage and stainless steel corrosion-resistant adjusting and cage screws for accessible outdoor or pit installations Integral stainless steel strainer Serviceable in line Bypass feature controls thermal expansion pressure High-temperature resistant reinforced diaphragm for hot water Replaceable stainless steel seat Reinforced EPDM with PTFE wetted surface diaphragm 300 psi maximum working pressure and 50 psi standard reduced pressure setting Sealed spring cage and stainless steel corrosion-resistant adjusting and cage screws for accessible outdoor or pit installation
Marketing Information
WATTS® Regulators Series LF25AUB-Z3 lead-free water pressure reducing valves are used in commercial and residential applications to reduce incoming water pressure for protection of plumbing system components and to reduce water consumption. It consists of a lead-free copper silicon alloy body construction, union inlet connection, integral stainless steel strainer and high-temperature-resistant reinforced diaphragm for hot water. The Series LF25AUB-Z3 is available with a variety of end connections including - threaded, solder, PEX, quick-connect and CPVC with both union and double union connections. Series LF25AUB-Z3 has an adjustable pressure range and is serviceable in-line. All parts are quickly and easily serviceable without removing the valve from the line. The standard bypass feature permits the flow of water back through the valve into the main when pressures, due to thermal expansion on the outlet side of the valve, exceed the pressure in the main supply.
WATTS® LF25AUB-Z3 Series 9392 Water Pressure Reducing Valve, 1-1/4 in Nominal, FNPT x NPT, 25 to 75 psi, 33 to 160 deg F
BrandWATTS®
MFG #0009392
Keller #503572
