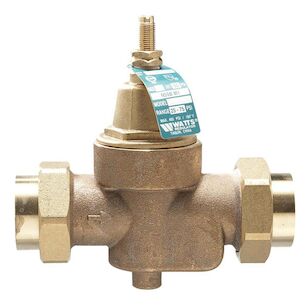

WATTS® LFN55B-M1 Series 0009586 Pressure Reducing Valve, 3/4 x 3/4 in Nominal, Union Solder X Union Solder
WATTS® LFN55B-M1 Series 0009586 Pressure Reducing Valve, 3/4 x 3/4 in Nominal, Union Solder X Union Solder
WATTS® Pressure Reducing Valve, LFN55B-M1 Series, 3/4 x 3/4 in Nominal, Union Solder X Union Solder Connection, 25 to 75 psi Adjustable, 400 psi Maximum Working, Water Media, Copper Silicon Body, Thermoplastic Seat, EPDM Disc, Bronze Trim, Lead-Free, 33 to 180 deg F, 2-1/4 in D x 6-1/4 in H
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$537.50 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandWATTS®
Body MaterialCopper Silicon
Connection TypeUnion Solder x Union Solder
Dimensions2-1/4 " D x 6-1/4 " H
Disc MaterialEPDM
MediaWater
Nominal Size3/4 x 3/4
Pressure Rating25 to 75 psi Adjustable, 400 psi Maximum Working
Seat MaterialThermoplastic
SeriesLFN55B-M1 Series
Temperature Rating33 to 180
Trim MaterialBronze
Shipping Dimensions (L x W x H)2.437" x 5.63" x 7.38"
Additional Information
ASSE 1003|CSA B356|cUPC Certified|IAPMO Certified|NSF Approved
Features & Benefits
- Integral stainless steel strainer removable for cleaning Thermoplastic seat and bronze cage Corrosion-resistant adjusting screw and sealed cage for waterworks pit installations
Documents
Marketing Information
This 3/4 in water pressure reducing valve is used in commercial and residential applications to reduce incoming water pressure for protection of plumbing system components and to reduce water consumption. It consists of a lead-free brass body construction, solder union inlet and outlet connection, integral stainless steel strainer, thermoplastic seat, bronze sealed spring cage for accessible outdoor waterworks or pit installations and a thermal expansion bypass. The temperature range is 33 to 180 deg F. Suitable for up to 400 psi, the pressure range can be adjusted from 25 to 75 psi with the standard setting at 50 psi.
WATTS® LFN55B-M1 Series 0009586 Pressure Reducing Valve, 3/4 x 3/4 in Nominal, Union Solder X Union Solder
BrandWATTS®
MFG #0009586
Keller #504096
My Part ##
Last Ordered#
$537.50 / ea
