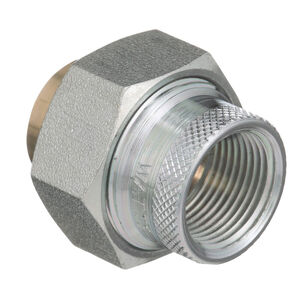

WATTS® LF3001A Dielectric Union, 3/4 in FIP x 3/4 in Socket, Brass/Steel
WATTS® LF3001A Dielectric Union, 3/4 in FIP x 3/4 in Socket, Brass/Steel
WATTS® Dielectric Union, LF3001A Series, Union Fitting, 3/4 in Connection Size 1, Connection Type 1: FIP, 3/4 in Connection Size 2, Connection Type 2: Socket, FIP|Socket Connection, Brass/Steel, Material Construction: Brass/Steel, 1-5/8 in Hex, 250 psi, 2-1/8 in L x 1-5/8 in W, 180 deg F, Additional Information: Steel Adapter/Inlet, Polysulfone Insulator
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$48.25 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandWATTS®
Additional InformationSteel Adapter/Inlet, Polysulfone Insulator
ApplicationCommercial and Residential Applications
Connection Size 13/4
Connection Size 23/4
Connection TypeFIP|Socket
Connection Type 1FIP
Connection Type 2Socket
Dimensions2-1/8 " L x 1-5/8 " W
Fitting TypeUnion
Hex Size1-5/8
Includes(2) Lead-Free Brass Tailpieces, Buna-N Gasket and Steel Union Nut
IndustryPlumbing
MaterialBrass/Steel
Material ConstructionBrass/Steel
Pressure Rating250
SeriesLF3001A Series
Temperature Rating180
Warranty1 Year Limited
Additional Information
NSF Certified
Features & Benefits
- Meets federal specifications for tensile strength and thread end connections Individually factory certified to withstand a minimum of 600 V on a dry line with no flashover Buna-N gasket Designed and manufactured to the highest quality standards FIP thread to solder connections
Documents
Marketing Information
Series LF3001A lead-free dielectric unions are used in commercial and residential applications to prevent accelerated corrosion and deterioration in the piping system due to galvanic and stray current. It is installed between pipes made from dissimilar metals and features a female iron pipe thread to solder connection. It consists of a union nut, two tailpieces and a gasket that separates the tailpieces to prevent an electric current from occurring. Series LF3001A is ideal in applications such as hot water storage tanks, water and air conditioners, processing tanks, steam, gas and water piping.
WATTS® LF3001A Dielectric Union, 3/4 in FIP x 3/4 in Socket, Brass/Steel
BrandWATTS®
MFG #0009865
Keller #504124
