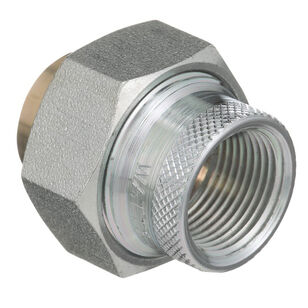

WATTS® LF3001A Series 0009866 Dielectric Union, 1 in FNPT x 1 in Socket, Brass/Steel
WATTS® LF3001A Series 0009866 Dielectric Union, 1 in FNPT x 1 in Socket, Brass/Steel
WATTS® Dielectric Union, LF3001A Series, Union Fitting, Connection Size 1: 1 in, Connection Type 1: FNPT, Connection Size 2: 1 in, Connection Type 2: Socket, FNPT|Socket Connection, Brass/Steel, Material Construction: Lead-Free Brass/Steel, 2-7/8 in Hex, 250 psi, 2-1/2 in L, 180 deg F, Additional Information: Polysulfone Insulator
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$101.50 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandWATTS®
Additional InformationPolysulfone Insulator
Connection Size 11
Connection Size 21
Connection TypeFNPT|Socket
Connection Type 1FNPT
Connection Type 2Socket
Dimensions2-1/2 " L
Fitting TypeUnion
Hex Size2-7/8
MaterialBrass/Steel
Material ConstructionLead-Free Brass/Steel
Pressure Rating250
SeriesLF3001A Series
Temperature Rating180
Additional Information
ARRA 2009|Buy American Act 1933|NSF Certified
Features & Benefits
- Buna-N gasket Designed and manufactured to the highest quality standards Individually factory certified to withstand a minimum of 600 V on a dry line with no flashover Meets federal specifications for tensile strength and thread end connections
Marketing Information
This 1 in lead-free dielectric union is used in commercial and residential applications to prevent accelerated corrosion and deterioration in the piping system due to galvanic and stray current. It is installed between pipes made from dissimilar metals and is used on applications such as hot water storage tanks, water and air conditioners, processing tanks, steam, gas and water piping. It consists of a female iron pipe thread to solder connection, union nut, two-tail pieces and a buna-N gasket that separates the tailpieces to prevent an electric current from occurring.
WATTS® LF3001A Series 0009866 Dielectric Union, 1 in FNPT x 1 in Socket, Brass/Steel
BrandWATTS®
MFG #0009866
Keller #504125
My Part ##
Last Ordered#
$101.50 / ea
