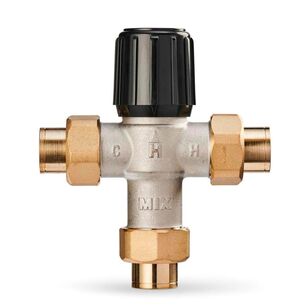

resideo AM-1 Series R AM100R-US-1/U Lead-Free Thermostatic Mixing Valve, 1/2 in Nominal, Sweat, 0.5 gpm, 150 psi
resideo AM-1 Series R AM100R-US-1/U Lead-Free Thermostatic Mixing Valve, 1/2 in Nominal, Sweat, 0.5 gpm, 150 psi
resideo Lead-Free Thermostatic Mixing Valve, AM-1 Series, Model: R, 1/2 in Nominal, Sweat Connection, 150 psi, 0.5 gpm Flow Rate, 4.4 in Inlet to Outlet Length, 2-1/4 in Top to Inlet Center, Brass/Bronze Body, EPDM Packing, Finish: Nickel-Plated/Teflon-Coated, 5.4 in H, Additional Information: 3.9 Cv Flow Coefficient, 39 to 80 deg F Cold Inlet, 120 to 212 deg F Hot Inlet, 70 to 180 deg F Outlet
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$289.35Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
Brandresideo
Additional Information3.9 Cv Flow Coefficient, 39 to 80 deg F Cold Inlet, 120 to 212 deg F Hot Inlet, 70 to 180 deg F Outlet
Body MaterialBrass/Bronze
Connection TypeSweat
Dimensions5.4 " H
FinishNickel-Plated/Teflon-Coated
Flow Rate0.5
IndustryHVAC
Inlet to Outlet Length4.4
ModelR
Nominal Size1/2
Packing MaterialEPDM
Pressure Rating150
SeriesAM-1 Series
Top to Inlet Center2-1/4
Additional Information
CSA Certified|IAPMO Certified|NSF/ANSI Certified
Features & Benefits
- Not intended for potable water usage PTFE-coated spool and body to prevent mineral build-up and extended valve life Lockable hand wheel Nickel-plated brass/bronze construction, EPDM O-rings Constant water temperature under different operating conditions Proportional valve (simultaneous control of hot and cold water) Straight thru design (hot and cold at same level) Designed for easy maintenance and element replacement
Documents
Marketing Information
Heating only proportional thermostatic mixing and diverting valves available in sweat, threaded, progress and PEX connections.
