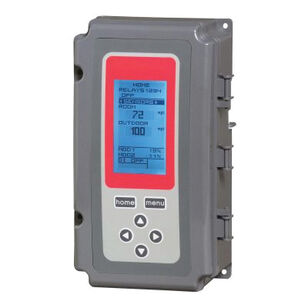

Name: Honeywell Home T775 Series T775S2008/U Relay Expansion Module, 24/120/240 V, 24 VAC, 10 A Resistive Contact
Brand: resideo
SKU: 505314
Price: 289.21 USD
Availability: OutOfStock

Attributes

Brandresideo

Additional Information50/60 Hz Frequency Rating, -40 to 52 deg C at 50 Hz, 1097 Ohm PTC at 77 deg F Sensor Element, 5% to 95% Non-Condensing Humidity, -40 to 60 deg C at 60 Hz Temperature Rating, 120 VAC, 1/2 hp, 9.8 AFL, 58.8 ALR, 125 VA Pilot-Duty, 240 VAC, 1/2 hp, 4.9 AFL,

Contact Rating24 VAC, 10 A Resistive

Dimensions8-5/32 " H x 4-13/32 " W x 2-15/16 " D

IndustryHVAC

SeriesT775 Series

Suitable For Use WithT775L2007 or T775P2003 Electronic Stand-Alone Controllers to Provide Up to 12 Relay Outputs for Staged Controls

Voltage Rating24/120/240

Additional Information

C-Tick Certified|CE Marked|cULus Listed

Features & Benefits

Operating the new T775 is easy and the intuitive programming will save you time on every job Each model includes a keypad lockout Certain models are offered with NEMA 4X enclosures to protect them from water and corrosion for installations like washdown areas, animal confinement areas, swimming pools and other similar locations The setback and disable output options, controlled by the built-in scheduler or digital input, will help save energy during unoccupied times and give you more control of the equipment without needing to purchase an additional time clock Run times can be displayed for the first four-relay outputs Each output can be individually configured for 0 to 10 V, 2 to 10 V, 4 to 20 mA or Series 90 To protect your equipment from freezing or overheating, models offering this feature give you the ability to adjust your control temperature at sensor A to protect equipment at sensor B The control adjusts its modulating output to prevent exceeding the user-entered high or low limit for sensor B Standard on every device, this feature delivers pinpoint (PI or PID) control on modulating outputs setup by default to behave just like the previous T775 Series 1000, but now you can adjust reaction times and behavior, giving you more control Anti-integral wind-up is standard Reset programming is easy Simply enter the high and low control temperatures and the corresponding high and low outdoor temperatures As your outside temperature gets colder, the set point temperature automatically adjusts to save energy If needed, setting a minimum off time can protect equipment and reduce the need for a separate time delay device Calibrate input sensors up to +/-10 deg F (+/-6 deg C) for temperature and up to +/-10% of range for other sensors (example - pressure, humidity) to compensate for resistance drops in longer sensor wire runs

Documents

Specification Sheet
