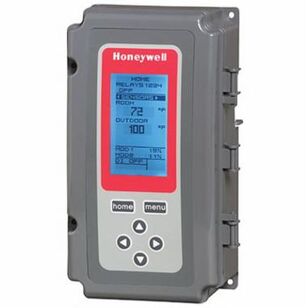

Honeywell T775A2009/U Temperature Controller, 24/120/240 VAC, Configuration: SPDT
Honeywell T775A2009/U Temperature Controller, 24/120/240 VAC, Configuration: SPDT
Honeywell Temperature Controller, Model: T775A, 24/120/240 VAC, Platinum Sensor, SPDT, +/-1 deg F Accuracy, PTC Sensing Element, 50/60 Hz, 10 A at 24 VAC Resistive, 1/2 hp at 120 VAC, 9.8 A Full Load, 58.8 A Locked Rotor at 120 VA Pilot-Duty, 1/2 hp at 240 VAC, 4.9 A Full Load, 29.4 A Locked Rotor at 125 VA Pilot-Duty Contact Rating, LCD Display, 1 to 150 deg F Differential Temperature, -40 to 248 deg F Temperature Settings, 2-15/16 in Length, 8-5/32 in Height, 4-13/32 in Width, NEMA 4X Enclosure, Up to 1000 ft Measuring, -40 to 125 deg F
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$436.03 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandHoneywell
IndustryHVAC
Additional Information
C-Tick Approved|CE Marked|cUL/UL Listed
Features & Benefits
- Typical applications includes - on/off control of fans, motors and heaters, proportional and floating control of damper and valve actuators, outdoor reset of heating and cooling systems Electronic control accuracy Linear platinum temperature sensor, LCD display indicates mode and output status, jumper switch provides field selection of F or C display Keypad allows precise temperature selection, easy one finger programming Remote sensing from up to 1000 ft Wide temperature setting range Adjustable differential and throttling range Heating and cooling stages independently programmable Available with one or two temperature inputs and up to four SPDT relay output stages or modulating (electronic Series 90, 4 to 20 mA or 0 to 18 VDC) outputs
Marketing Information
The T775 electronic remote temperature controllers are the next generation of commercial and agricultural controls capable of remote sensing of temperature and providing switched and/or proportional outputs to various types of loads.
Honeywell T775A2009/U Temperature Controller, 24/120/240 VAC, Configuration: SPDT
BrandHoneywell
MFG #T775A2009/U
Keller #505761
