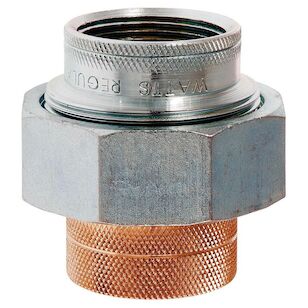

WATTS 0009870 1/2 LF3005A DIE UNION
WATTS 0009870 1/2 LF3005A DIE UNION
Dielectric Union
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$67.00Â /Â ea
In Stock
- Attributes
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandWATTS®
IndustryPlumbing
Prop 65 WarningYes
Shipping Dimensions (L x W x H)1.5" x 1.5" x 2.63"
Features & Benefits
- Buna-N gasket
- Maximum pressure is 250 psi (17.2 bar)
- Maximum temperature 180 degrees F (82 degrees C)
- MIP thread to solder connections
Documents
Marketing Information
This 1/2 inch lead free dielectric union is used in commercial and residential applications to prevent accelerated corrosion and deterioration in the piping system due to galvanic and stray current. It is installed between pipes made from dissimilar metals and is used on applications such as hot water storage tanks, water and air conditioners, processing tanks, steam, gas, and water piping. It consists of a male iron pipe thread to solder connections, union nut, two tailpieces, and a Buna-N gasket that separates the tailpieces to prevent an electric current from occurring. The maximum temperature is rated up to 180 degrees F (82 degrees C) at 250 psi (17.2 bar).
WATTS 0009870 1/2 LF3005A DIE UNION
BrandWATTS®
MFG #0009870
Keller #506753
